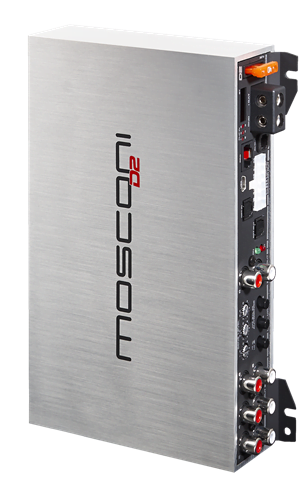

Amplificatore D2-80.6- DSP Full Digital Mosconi

mplificatore in classe D, 6 canali con DSP a bordo
+ 2 uscite PRE processate.
DSP con ingresso e uscita digitale SP-DIF, funzione ingresso AUX per vivavoce, navigatore e sorgenti stereo esterne.
Finitura grigio spazzolato.
Power Rating: 105 Watt @ 4 Ohm < 1% THD+N Sn Ratio: > XX dBA (ref: 1 Watt into 4 Ohm)
—
(*) VERY IMPORTANT NOTE – READ CAREFULLY
This amplifier is designed to play music on real speakers. It is not rated to drive static signals on pure resistive loads.
Target powers (14V4):
80W @ 4 Ohm
100W @ 2 Ohm
70W x 4 + 215W x 1 (Ch 5-6) @ 4 Ohm
Input sensitivity: (Power rating ref)
0.27 V ÷ 8.5 V (Low Level)
0.7 V ÷ 22 V (High Level)
Xover functions: (always in line)
Subsonic Filter: (10 ÷ 20000 Hz)
Low Pass Filter: (10 ÷ 20000 Hz)
Slope (dB/Oct): 6-12 [up to 60 (CH1-2-3-4) or 48 (CH5-6-7-8), if cascaded]
Band pass allowed, Variable Q: 0.5 ÷ 40
Special Features:
Remote Volume Control (optional)
Phase Inversion: 0° ÷ 180°
Time delay (ms): 0 ÷ 15 (0.02 steps)
Low Level / High Level imput mode (by switch)
Auto Sense (only in High Level mode)
Low Level Output (CH7/8)
Size:
200x145x40 mm
Weight:
1340 g
