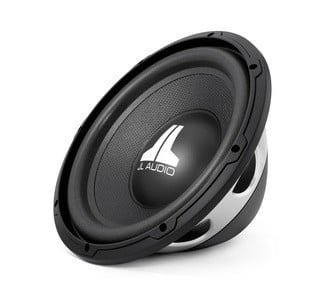

SUBWOOFER 12WXV2-4 JL AUDIO

The 12WXv2 is an ideal subwoofer driver for lower power applications. It features excellent suspension linearity and a DMA-optimized motor system to keep distortion low. Our patented Elevated Frame Cooling design is also on-board for enhanced power handling and reliability.
The 10WXv2 is best used with amplifier power in the 75W – 200W range and is optimized to operate in a compact 1.375 cu. ft. (38.94 l) sealed enclosure, or a 1.75 cu. ft. (39.6 l) ported enclosure. Detailed enclosure recommendations can be found in the “Specifications” tab.
Continuous Power Handling (RMS) 200 W
Recommended RMS Amplifier Power 75 – 200 W
Nominal Impedance (Znom) 4 Ω
Free Air Resonance (Fs) 27.43 Hz
Electrical “Q” (Qes) 0.596
Mechanical “Q” (Qms) 9.97
Total Speaker “Q” (Qts) 0.562
Equivalent Compliance (Vas) 3.337 cu ft / 94.49 liters
One-Way Linear Excursion (Xmax)* 0.375 in / 10 mm
Reference Efficiency (no) 0.3100%
Efficiency (1 W / 1 m)** 87.17 dB SPL
Effective Piston Area (Sd) 76.950 sq in / 0.0496 sq m
DC Resistance (Re) 3.51 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
