Mitsubishi Videoproiettore HC 3200.FULLHD.DLP.PRODOTTO ITALIA.3 ANNI DI GARANZIA

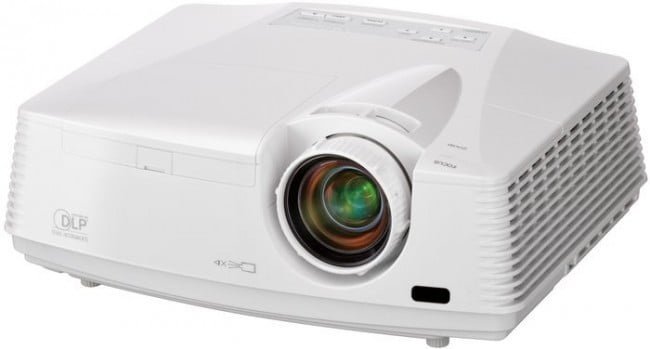

MITSUBISHI HC 3200
PRODOTTO UFFICIALE ITALIA CON 3 ANNI DI GARANZIA

The latest 0.65 DLP™ chiP

A key feature of the HC3200 is the latest Digital Light Processing (DLP™) chip incorporating a new digital micromirror device (DMD) comprised of densely embedded micromirrors. A smaller mirror cavity diameter and narrower gaps between the mirrors improve the aperture ratio of the innovative chip, and reflective light diffusion has been greatly reduced by improving the wiring below the mirror section. The mirrors are controlled to tilt repeatedly several thousand times per second, enabling smooth, true reproduction of the digital source into finely detailed images with no noise or deterioration.

Digital Micro-Mirror Device

DMD Pixel Composition Map

1.5x Short-throw HD Zoom Lens

A newly developed short-throw zoom lens has been adopted. The 4-cluster, 13-piece all-glass lens provides excellent focusing performance with 1.5x magnification of high-definition images. Improvements in image depth and the lens aperture make it possible for deep blacks to be expressed.

1100lm brightness, 2900:1 native contrast [ANSI Contrast 600:1]

A fixed iris is adopted, realizing both enhanced brightness and contrast for images. Even in a relatively bright living room with the curtains closed, movies, sports and other programs from high-definition broadcasting and Blu-ray sources can be fully enjoyed in high-definition images.

1000:1

2900:1

Note: Photos are contrast impressions

Color Management for Preferred Color Adjustment

Adjust images to your color preferences. R (red), G (green), B (blue), C (cyan), M (magenta), and Y (yellow) can each be adjusted individually with the built-in color management function.

Before adjustment

After adjustment

Note: Photos are color adjustment impressions

Other Features

Long-life Lamp of 5,000hours(*1)
Low noise operation at 25dBA (in low mode)
DDP3021 Full 10-bit Panel Driver
Blu-ray 24P direct output compatible
Richer, More True-to-life Colors (at the color temperature of D65)
Anamorphic Lens Compatibility−Choose Setting Based on Media Played
BrilliantColor™(*2) (6 segment color wheel) Adopted
Adjustable Overscan
One-touch projection–Trigger terminal
Vertical Distortion Correction

(*1):	When used in low lamp mode. Maximum lamp life in standard mode use is 3,000 hours. Lamp life refers to the average time required for brightness to be reduced by half, and not the time specified in the warranty. Lamp service life may vary widely depending on the environment and conditions, and whether or not cleaning and other maintenance procedures are followed.
(*2):	BrilliantColor is a trademark of Texas Instruments.

Projection system

DLP™ system

Panel specs	Panel size	0.65 DMD, Aspect ratio 16:9
	Number of pixels	1920 × 1080
	Drive system	DMD reflection system
	Array	Stripe pattern

Optical specs	Lens	Zoom / focus operation	1.5 zoom/manual operation
		f (mm)	20.6-30.1
	Light source lamp		230W (at standard mode), 190W (at low mode)
	Optical system		Time-division color separation/composition system

Color wheel

6 segment (RGB RGB) × 4

Projection screen size (inches)

50-300

Images	Brightness (lm)		1100
	Contrast ratio		2900:1
	ANSI Contrast ratio		600:1
	Resolution	PC input	VGA 640 × 480 – 1600 × 1200
	Scan frequency	Horizontal (kHz)	15-80
	Scan frequency	Vertical (Hz)	50-85

Input signal system	Video	NTSC, NTSC4.43, PAL (including PAL-M and N), SECAM, PAL-60 Video input: 480i/p, 576i/p, 1080i 60/50, 1080p 60/50/24, 720p
	PC	PC/AT compatibles, Mac

Input

Video	PC input	Mini D-Sub 15 pin	1 terminal
	HDMI input	HDMI terminal	1 terminal (Ver.1.3)
	Composites	RCA terminal	1 terminal
	S	S-Video terminal	1 terminal
	Components	RCA terminal	1 terminal (component can be also input to Mini D-Sub 15 pin)
Serial / RS-232C standard			1 terminal (Mini DIN 8 pin)

Functions	Gamma mode		AUTO/SPORTS/VIDEO/CINEMA/USER1/USER2
	Digital keystone (Vertical)		±15 steps
	Power source voltage		AC100-240V 50/60Hz
	Power consumption (W)		330 (at waiting 0.5W)
	Weight (kg / lbs)		3.6 / 7.9
	Main unit dimensions	(W × D × H)	345 × 129 × 270mm / 13.6" × 5.1 × 10.6" (excluding height adjustment)
