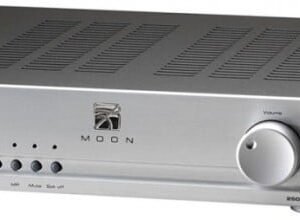

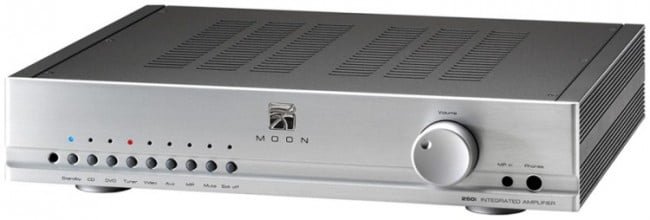

Amplificatore Integrato MOON 250i
29 Altri utenti stanno guardando questo prodotto ora
€2.000,00
Amplificatore Integrato MOON 250i
Consegna stimata:3 giorni
[DISPLAY_ULTIMATE_SOCIAL_ICONS]
Garanzia di pagamento sicuro e protetto
The MOON 250i delivers "audiophile" performance in an affordable and elegant package. Designed with numerous convenient features, this integrated amplifier will provide for years of hassle-free musical enjoyement. Over thirty years of experience in the design and manufacturing of award winning high-performance audio components has paved the way for the new 250i. Using numerous technologies found in our other highly sought after integrated amplifiers, the MOON 250i produces an astonishing level of sonic performance with no equal in its price range.
Significant Design Features:

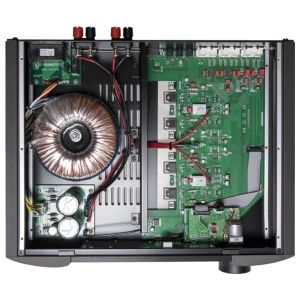

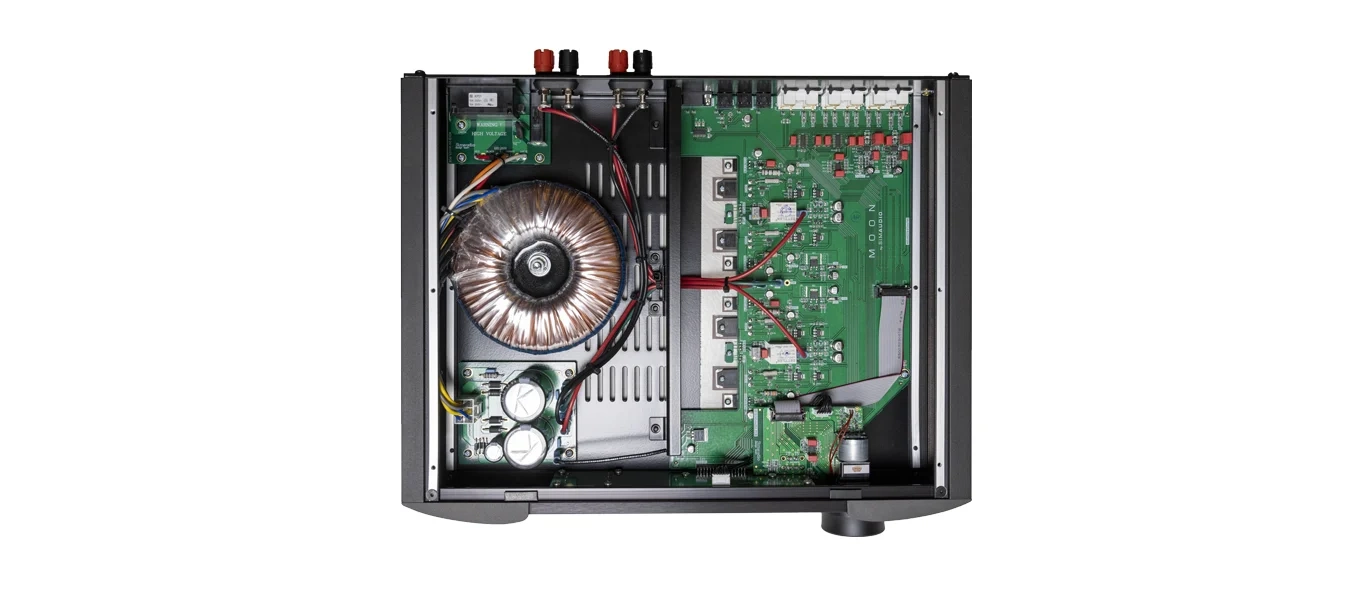

· An oversized power supply using a custom toroidal transformer design
· Rated output of 50 watts/channel into 8 Ω and 100 watts/channel into 4 Ω
· 6 line-level inputs including a front-mounted 1/8” mini-jack for personal media players
· Headphone output on ¼” TRS jack located on the front panel
· Remote control operation
· RS-232 port for (i) full unsolicited bidirectional feedback and (ii) firmware updates
· IR input for external control
· SimLink controller port for 2-way communications with other compatible MOON components
· Class A output to 5 watts for greater efficiency
· PCB w/ pure copper tracings & gold plating that yields low impedance characteristics
· Optimized selection of very high quality electronic components
· Heat-sink free design incorporating an aluminum chassis for evenly distributed heat dissipation
· Rigid chassis construction to minimize the effects of external vibrations
· Top cover is mounted with countersunk screws
· Designed to be powered up at all times for optimal performance
· Low operating temperature to ensure a longer than normal life expectancy
· Includes CRM-2 remote control.
· Rated output of 50 watts/channel into 8 Ω and 100 watts/channel into 4 Ω
· 6 line-level inputs including a front-mounted 1/8” mini-jack for personal media players
· Headphone output on ¼” TRS jack located on the front panel
· Remote control operation
· RS-232 port for (i) full unsolicited bidirectional feedback and (ii) firmware updates
· IR input for external control
· SimLink controller port for 2-way communications with other compatible MOON components
· Class A output to 5 watts for greater efficiency
· PCB w/ pure copper tracings & gold plating that yields low impedance characteristics
· Optimized selection of very high quality electronic components
· Heat-sink free design incorporating an aluminum chassis for evenly distributed heat dissipation
· Rigid chassis construction to minimize the effects of external vibrations
· Top cover is mounted with countersunk screws
· Designed to be powered up at all times for optimal performance
· Low operating temperature to ensure a longer than normal life expectancy
· Includes CRM-2 remote control.
| Configuration | Single-ended / 2-channel |
| Class of operation – Amplifier | A/AB |
| Single Ended Inputs (RCA) | 5 pairs |
| Mini-jack Input (1/8") | 1 |
| Input Sensitivity | 370mV – 3.0V RMS |
| Input Impedance | 11,000 Ω |
| Preamplifier Output | 1 pair |
| Output Power @ 8 Ω | 50 Watts per channel |
| Output Power @ 4 Ω | 100 Watts per channel |
| Output Impedance | 0.04 Ω |
| Damping Factor | > 200 |
| Signal-to-noise Ratio | 101dB @ full power |
| Maximum Output Voltage | 22 Volts |
| Slew Rate | 20V/µs |
| Maximum Current | 15 amperes |
| Frequency Response | 10Hz – 100kHz (+0/-3dB) |
| Crosstalk @ 1kHz | -78dB |
| IMD | < 0.05% |
| THD (20Hz – 20kHz @ 1 watt / @ 50 watts) | < 0.015% / < 0.02% |

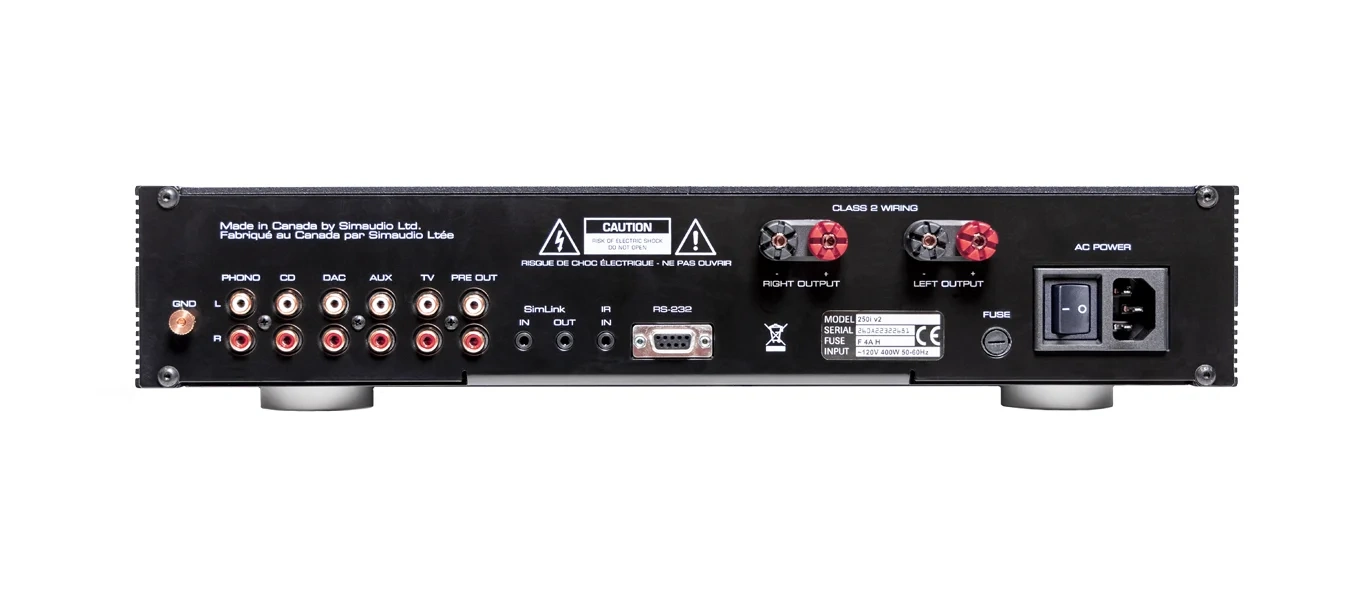

| SimLink Port | 1 input + 1 output each on 1/8" mini-jack |
| RS-232 Port | 9-pin female DB connector |
| IR input | 1/8" mini-jack |

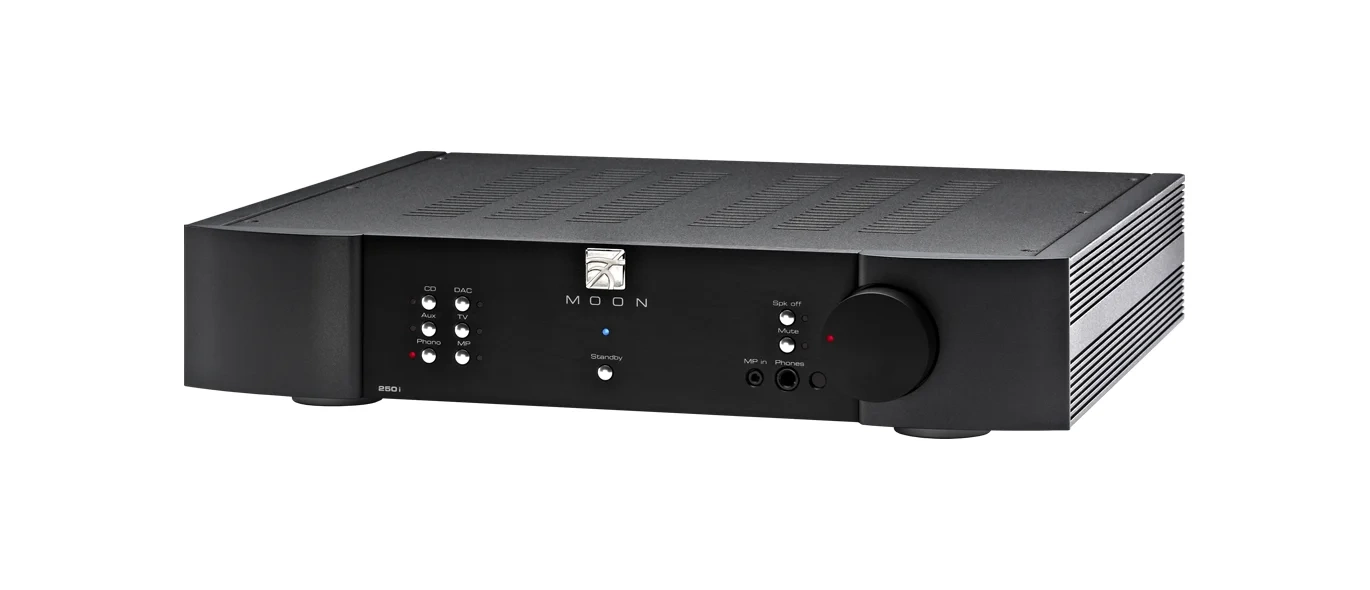

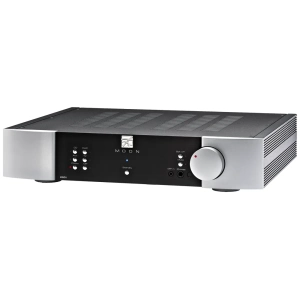

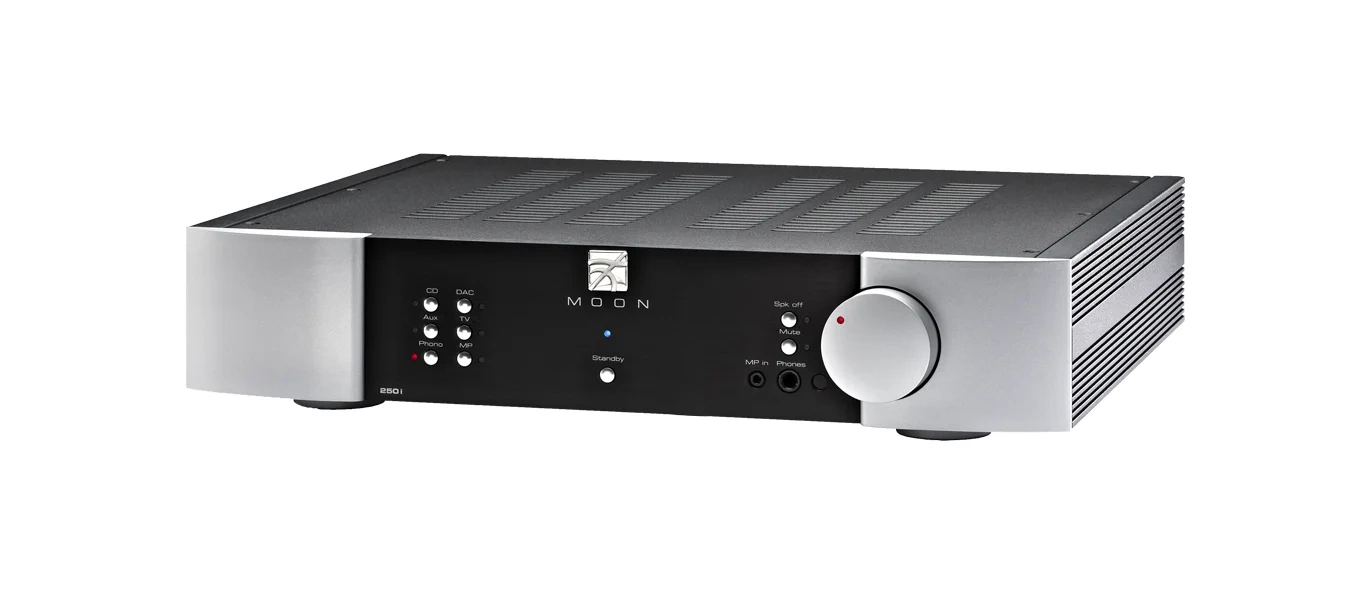

| Available Faceplate Finishes | Black and Silver |
| Remote Control | CRM-2 Full Function |
| Power Consumption @ idle | 11 Watts |
| AC Power Requirements | 120V / 60Hz 240V / 50Hz |
| Fuse Replacement – 120V | 4A long fast blow |
| Fuse Replacement – 230V | 2A long fast blow |
| Shipping weight | 22 lbs / 10 kgs |
| Dimensions (W x H x D) | 16.9 x 3.5 x 14.4 in. (42.9 x 8.9 x 36.6 cm.) |
Features & specifications are subject to change without notice
