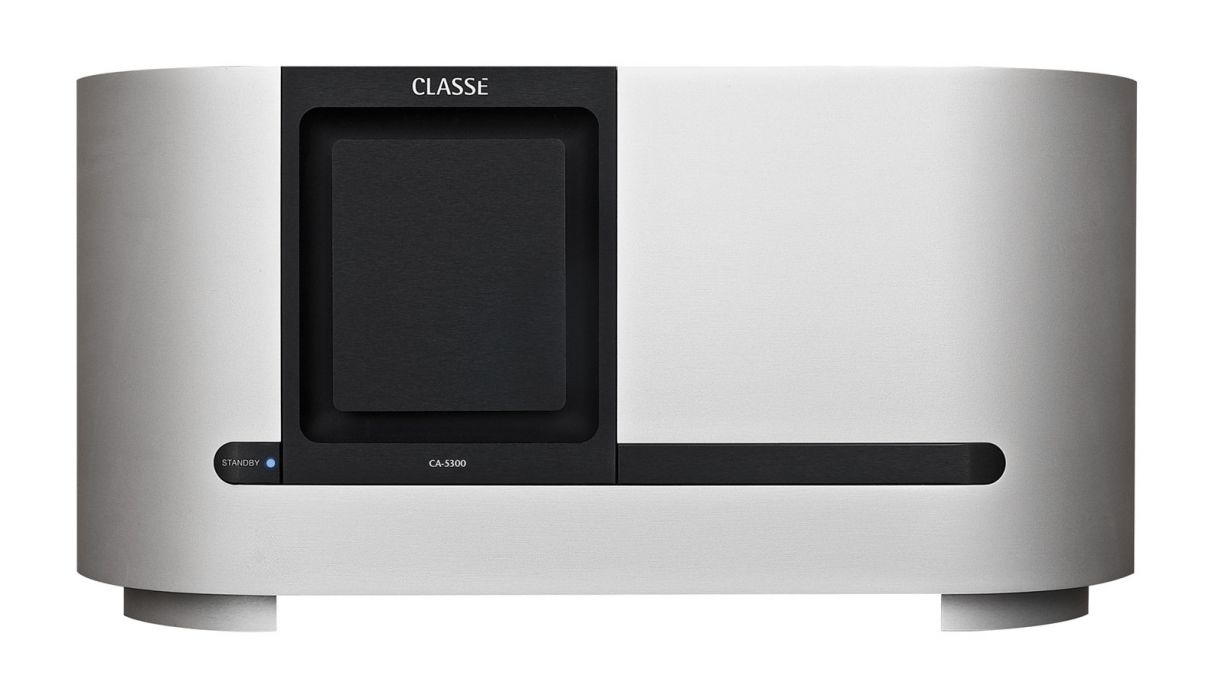

AMPLIFICATORE FINALE MULTICANALE CLASSÈ CA-5300
€9.450,00
AMPLIFICATORE FINALE MULTICANALE CLASSÈ CA-5300
Consegna Garantita
Consegna Al Piano O Fermo Deposito
AMPLIFICATORE FINALE MULTICANALE CLASSÈ CA-5300
Finale di potenza a 5 canali ad alta corrente. 5 x 300W su 8 ohm. Circuitazione bilanciata a simmetria complementare. Dispositivi j-fets per l’ingresso, mosfet per i driver e transistor bipolari per gli stadi di uscita. Trasformatore toroidale. Ingresso RCA e XLR. RS-232. Trigger IN/OUT. Controllo IR IN/OUT. RJ45 per bus dati. Tecnologia ICTunnel per migliorare il raffreddamento e la qualità audio.
CA-5300 FIVE-CHANNEL AMPLIFIER
|
All tests un-weighted and 500kHz measurement bandwidth (except SNR). |
||
|
Frequency response |
1 Hz – 100 kHz, -3dB |
|
|
Output power |
300W rms into 8Ω (24.8 dBW) |
|
|
Harmonic Distortion |
<0.002% at 1 kHz balanced |
|
|
Peak Output Voltage |
167V peak to peak, 53V rms no load |
|
|
Input Impedance |
50kΩ balanced / single ended |
|
|
Voltage gain |
29dB balanced / single ended |
|
|
Input level at clipping |
2.1V rms balanced / single ended |
|
|
Intermodulation |
>90dB below fundamental into >90dB below fundamental into |
|
|
Signal to Noise Ratio |
-116dB at peak output into 8Ω |
|
|
Output impedance |
0.03Ω @ 1 kHz |
|
|
Standby power |
< 1W |
|
|
Rated power |
1300W @ 1/8th power into 8Ω |
|
|
Width |
17.5” (444mm) |
|
|
Depth |
22.52” (572mm) (excluding connectors) |
|
|
Height |
8.78” (223mm) |
|
|
Gross weight |
115 lb (52.3 kg) |
|
|
Net weight |
105 lb (47.7 kg) |
|
|
Mains voltage |
Specified on rear panel |
|
* Specifications for output into 4 ohms are omitted because the AC Mains/power supply cannot support all channels driven simultaneously at this level, which would require over 5,000W and only occur under a special test condition. The amplifier easily drives lower impedance loads.
