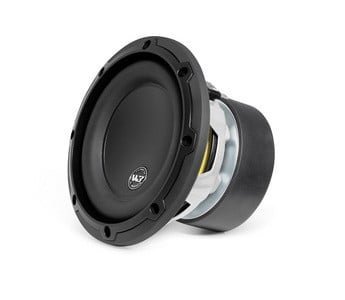

JL Audio 6W3V3-4 | Subwoofer

f you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.
The 6W3v3-4 is best used with amplifier power in the 50W – 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. (7.1 l) ported enclosure. Detailed enclosure recommendations can be found in the “Specifications” tab.
Continuous Power Handling (RMS) 150 W
Recommended RMS Amplifier Power 50 – 150 W
Nominal Impedance (Znom) 4 Ω
Free Air Resonance (Fs) 41.80 Hz
Electrical “Q” (Qes) 0.533
Mechanical “Q” (Qms) 11.027
Total Speaker “Q” (Qts) 0.508
Equivalent Compliance (Vas) 0.181 cu ft / 5.13 L
One-Way Linear Excursion (Xmax)* 0.35 in / 8.89 mm
Reference Efficiency (no) 0.0700%
Efficiency (1 W / 1 m)** 80.49 dB SPL
Effective Piston Area (Sd) 17.36 sq in / 0.0112 sq m
DC Resistance (Re) 3.476 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
