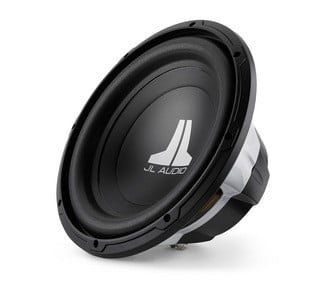

JL Audio 12WOV3-4 | Subwoofer

The 12W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity. Its overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 12W0v3 is best used with amplifier power in the 75W – 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the “Specifications” tab.
Continuous Power Handling (RMS) 300 W
Recommended RMS Amplifier Power 75 – 300 W
Nominal Impedance (Znom) 4 Ω
Free Air Resonance (Fs) 28.43 Hz
Electrical “Q” (Qes) 0.715
Mechanical “Q” (Qms) 10.709
Total Speaker “Q” (Qts) 0.67
Equivalent Compliance (Vas) 2.530 cu ft / 71.64 L
One-Way Linear Excursion (Xmax)* 0.45 in / 11.4 mm
Reference Efficiency (no) 0.2200%
Efficiency (1 W / 1 m)** 85.64 dB SPL
Effective Piston Area (Sd) 74.509 sq in / 0.0481 sq m
DC Resistance (Re) 4.280 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
