Our reference quality ZR component speakers are made for those seeking the highest possible levels of audio performance and are the pinnacle of the JL Audio component speaker lineup.

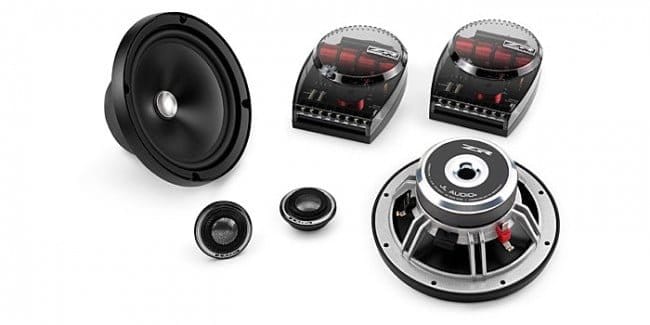

The C5-525 component system features 5.25 inch (130 mm) component woofers with die-cast alloy baskets and Kurt Müller cones and suspensions. The woofer design benefits from JL Audio’s vast woofer design experience and advanced modeling systems.
The ZR component tweeters included in this system feature 1-inch aluminum domes with rubber-roll suspensions that damp unwanted ringing while delivering spectacular high-frequency extension. A flush-mounting fixture with a classy electro-formed ring provides a sophisticated touch in any installation.
ZR crossover networks are bi-amp capable and built with super-premium component parts, including U.S.-made Mills™ resistors mounted on an extruded aluminum heat sink, polypropylene capacitors, and segmented air-core inductors. Five levels of tweeter attenuation are provided, as well as four levels of mid-range presence adjustment, for twenty possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed “ZR” logo.
When nothing but the best will do, choose ZR.
Sonic character: Accurate and detailed
Made in Germany, Sold as a pair.
Continuous Power Handling (RMS) 75 W
Peak Music Power 225 W
Recommended RMS Amplifier Power (per Ch.) 25 – 150 W
System Efficiency 89.5 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 53 Hz – 25 KHz ± 3 dB
