Segment Leading Performance in a Compact Package

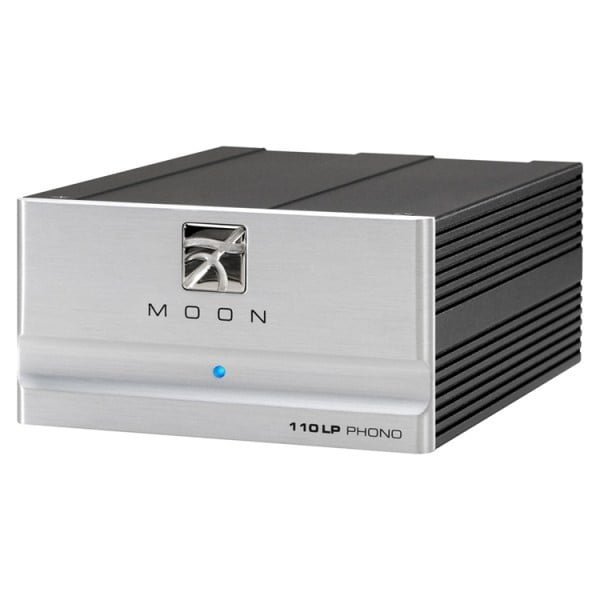

The MOON 110LP simplifies high quality analog playback. Derived from technologies found its big brother and the next evolution of the hugely popular LP3, the 110LP represents another leap forward in affordable phono preamplifier design. Special attention was paid to parts spacing and layout resulting in a much shorter signal path and vastly improved signal-to-noise characteristics.

The easiest way to describe the sound of the 110LP in a single word would be dynamic. All of the Simaudio sonic characteristics are more present than before; fast, tight, extended bass response, a natural open midrange, and airy extended high frequencies. This is achieved through the combination of an improved power supply and an enhanced circuit layout. The110LP also benefits from an increased input overload margin.

Convenience and flexibility are also key aspects to the MOON 110LP's design; adjustments to ain, resistance and capacitance are easily done in a matter of just a few minutes. The 110LP can easily be configured for compatibility with virtually any moving coil or moving magnet cartridge. Rounding out the whole package is a brand-new rigid all-aluminum chassis with a ¼" thick faceplate available in either black or silver anodized finish.

Features:

• End-user adjustable impedance loading (100Ω and 47kΩ)
• End-user adjustable capacitance loading (0pF and 100pF)
• End-user adjustable gain for moving magnet (40dB) & moving coil cartridges (60dB)
• Two-layer PCB tracings using pure copper for low impedance characteristics
• Inductive DC Filtering for a significantly lower noise floor
• Accurate matching of military-grade components with ultra-tight tolerances
• Surface-mount technology for extremely short signal paths
• Compact, rigid all-aluminum chassis with gold-plated RCA connectors

SPECIFICATIONS

nputs: RCA (Pr)
Input Impedance: 100 Ω, 47K Ω (User selectable)
Input Capacitance: 0 pF, 100 pF (User selectable)
Gain: 40dB and 60dB (User selectable)
Output: RCA (Pr)
Input overload: 45mV @ 40dB gain / 4.5mV @ 60dB gain
SNR: 104dBr @ 40dB gain / 87dBr @ 60dBr
Maximum Output: 3.0 Volts @ 10kΩ
Frequency Response: 20Hz – 20kHz (±0.5dB)
Crosstalk: -97dB @ 1kHz
IMD: <0.009%
THD: <0.001% (20Hz – 20kHz)
Power Consumption: 2 Watts
AC Power Requirements: 120VAC @ 60Hz
Shipping weight: 2.5 lbs
Dimensions (WHD): 5.0×2.9×6.5"
