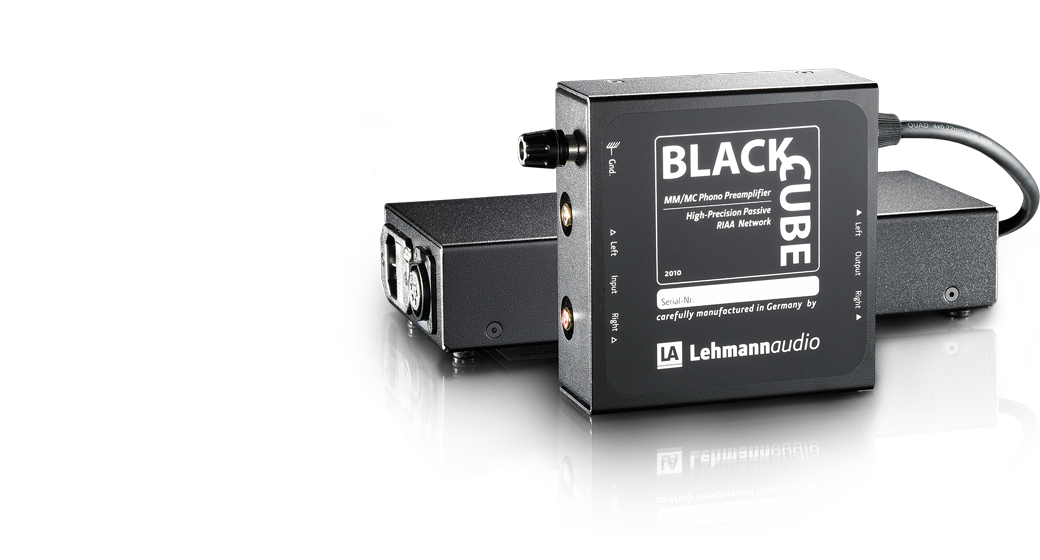

PHONO STAGE LEHMANN AUDIO BLACK CUBE SE

Stadio phono MM/MC formato dal Black Cube e dall’alimentatore PWX.

Black Cube SE
Sensitivity for output level 775 mV/ 0 dB (with activated high gain jumper) Gain 1 kHz Maximum input level 1 kHz Signal to noise ratio (RMS unweighted)	MM: 3.8 mV/1 kHz; MC: 0.38 mV/1 kHz MM: 46 dB; MC: 66 dB MM: 45 mV; MC: 4,5 mV MM: 71 dB; MC: 63 dB
Gain	36 dB, 46 dB, 56 dB, 66 dB
Channel separation	> 85 dB at 10 kHz
Input impedance	47 kohms, 1 kohm, 100 ohms 1 x custom load 1 x hardwire slot
Output impedance	47 ohms
Input capacitance	100 pF
Channel mismatch	typ. 0.5 dB
Bass filter	50 Hz, 6 dB/oct.
Power consumption	< 3 W
Outer dimensions W x D x H	Audio section: 113 mm x 108 mm x 45 mm PWX power supply: 93 mm x 233 mm x 45 mm
Weight	Audio section incl. cable to power supply: 0.4 kg netto PWX power supply: 1.0 kg netto
