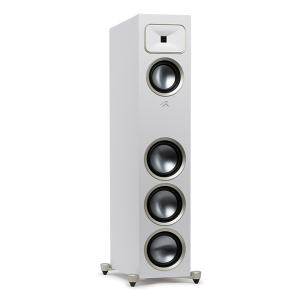

MARTIN LOGAN Foundation F1 | Coppia Diffusori Pavimento 3 vie

Dimensions (H x W x D, with feet)

41-7/16” x 8-3/8” x 14-7/16”
105.2cm x 21cm x 36.7cm

Frequency Response

41 Hz – 23 kHz ± 3 dB

Tweeter Dispersion (horizontal x vertical)

90° x 90°

Recommended Amplifier Power

15 – 200 watts

Sensitivity

92 dB

Impedance

4 ohms

High Frequency Driver

0.94” x 1” (2.4 x 2.5cm) Gen2 Folded Motion® Tweeter S with 3.5 in2 (22.6 cm2) diaphragm.

Crossover Frequency

240 Hz, 2,700 Hz (3-way)

Mid-Frequency Drivers

5.5” (14cm) aluminum cone with cast aluminum basket. Non-resonant sealed chamber format. Unibody cone construction.

Low Frequency Driver

3x 5.5” (14cm) aluminum cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction.

Cabinet

Rear Ported

Binding Post Inputs

5-way Binding Posts (Non Bi-Wire)

Weight

46.5lbs / 21.1kg

Finish

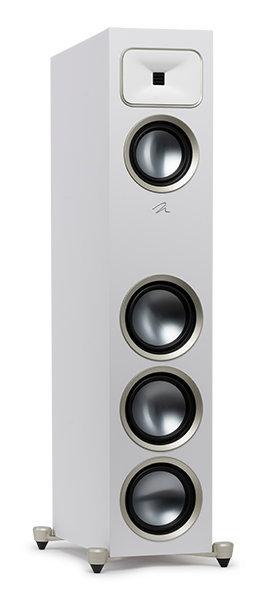

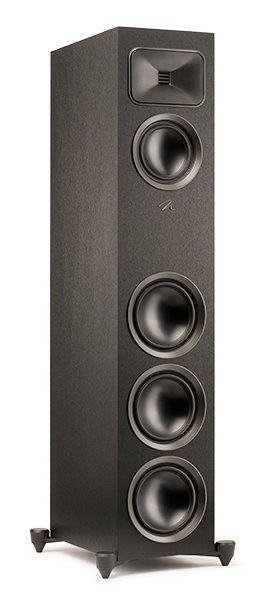

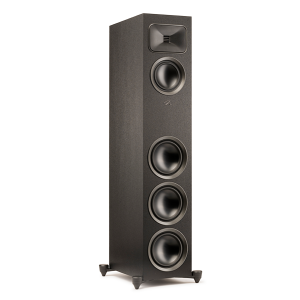

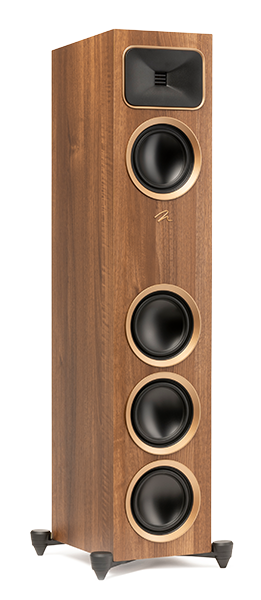

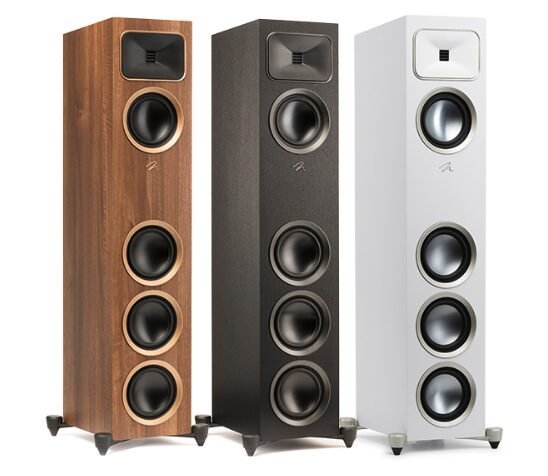

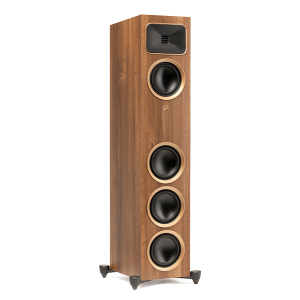

Black, Walnut, and Satin White
