Lettore CD MOON – CD.5
€1.450,00
Consegna Garantita
Consegna Al Piano O Fermo Deposito

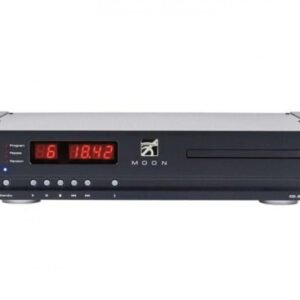

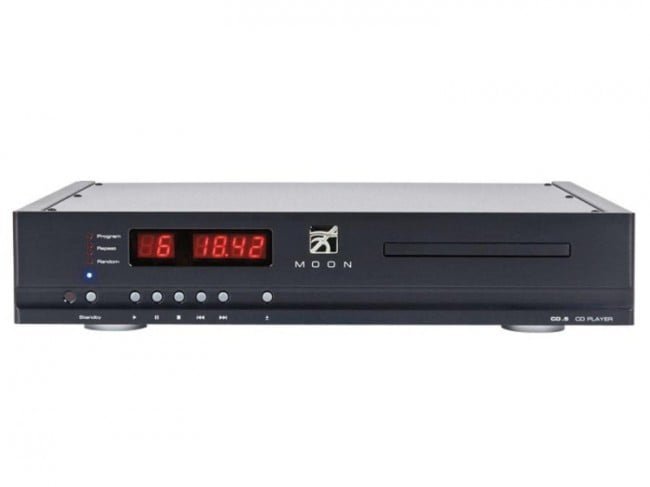

The CD.5 is a classic no-frills basic CD spinner. It has a simple red LED display, basic connections (digital output is electrical-only) and no enhanced disc compatibility. It is built into a simple, but high-quality case which adds a touch of class and is notably swift to accept commands, making it a good machine for the impatient.
Inside, the theme of simple, but well done continues with a classic audio-only transport and a single circuit board on which are mounted all components, including the toroidal mains transformer and the mains inlet. Almost all components are surface mount types and their number has been kept low by using recent, highly integrated control and decoding chips.
The MOON CD.5 was recently renamed the MOON 230D
| Configuration | Single-ended |
| Transport Mechanism | Proprietary Design |
| Front Panel Controls | Stand by · Play · Pause · Stop · Previous Track · Next Track· Open / Close |
| Front Panel Display | Track number · Time (elapsed or remaining for track or disc) |
| Front Panel LED Mode Indicators | Programming · Repeat (disc and track)· Random |
| DAC / Digital Filter | BurrBrown PCM1793 |
| Frequency Response (audible) | 20Hz – 20kHz +0/-0.2dB |
| Frequency Response (full range) | 2Hz – 72kHz +0/-3dB |
| THD @ 1kHz, 0dBFS (A-weighted) | < 0.004 % |
| IMD | < 0.007 % |
| Dynamic Range | > 108dB |
| Signal-to-noise ratio | > 108dB @ full output |
| Channel Separation | > 103dB |
| Low Level Linearity | ±1.0dB to below 120dBFS |
| Intrinsic Jitter | < 325 picoseconds RMS |
| Single-ended Analog Outputs | 1 pair RCA |
| Digital Output | S/PDIF (RCA) |
| Max. Analog Output @ 0dBFS – RCA | 2.0 Volts @ 100 Ω |
| Digital Output Impedance S/PDIF | 75 Ω @ 0.5 Volts |
| Available Faceplate Finishes | Black and Silver |
| Remote Control | CRM-2 Full Function |
| Power Consumption @ idle | 15 Watts |
| AC Power Requirements | 120V / 60Hz 240V / 50Hz |
| Fuse Replacement – 120V | 0.2A short slow blow |
| Fuse Replacement – 230V | 0.1A short slow blow |
| Shipping weight | 14 lbs / 6.25 kgs |
| Dimensions (W x H x D) | 16.9 x 3.5 x 13.1 in. (42.9 x 8.9 x 33.2 cm.) |
Features & specifications are subject to change without notice.
D.G.
