Lettore CD MOON – 230D
1.590,00€
Spedizione calcolata al checkout · Reso entro 14 giorni.
Consegna stimata:3 giorni
Perché acquistare da Altovolume
✓ Specialisti Hi-Fi dal 2002
✓ Consulenza reale prima e dopo l’acquisto
✓ Spedizioni sempre protette e assicurate
✓ Prodotti ufficiali con garanzia italiana

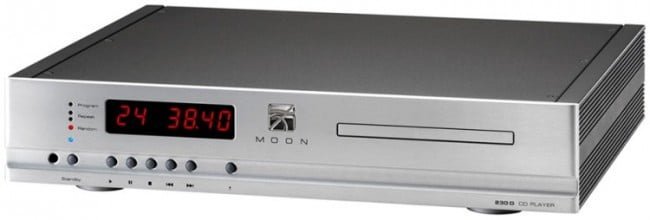

The MOON 230D Disc Player offers immense value, delivering unrivaled performance in a distinctive package. With features including a fully customized CD transport mechanism, highly advanced digital and analog circuitry, and a large easy-to-read display, the 230D creates music like no other player in its class. Sophisticated … Musical … Incorporating technologies found in our highly acclaimed MOON CD players, the 230D Disc Player is the perfect companion source component for the 220i Integrated Amplifier, providing for many years of listening pleasure and hassle-free use. Thirty years of experience in the design and manufacturing of award wininng high-performance components has paved the way for the MOON 230D. The MOON 230D was previously available as the MOON CD.5
|
| Significant Design Features: · 8 stages of DC voltage regulation · Internal upsampling which uses 24-bit/352.8kHz processing · Proprietary M-ProDrive transport mechanism with in-house developed hardware & software · BurrBrown PCM1793 high-resolution 24-bit/192-kHz DAC and 8X oversampling digital filter · All digital and analog audio circuitry mounted on a single circuit board, each with their own respective ground plane, to minimize signal path lengths and eliminate any potential for interference and signal degradation · MOON Alpha Clocking System for exceptionally low intrinsic jitter levels · Advanced analog signal path using a DC servo circuit and proprietary analog filter · PCB w/ pure copper tracings & gold plating that yields low impedance characteristics · Top cover is mounted with countersunk screws · Optimized selection of very high quality electronic components · Designed to be powered up at all times for optimal performance · Includes CRM-2 remote control. |
| Configuration | Single-ended |
| Transport Mechanism | Proprietary Design |
| Front Panel Controls | Stand by · Play · Pause · Stop · Previous Track · Next Track· Open / Close |
| Front Panel Display | Track number · Time (elapsed or remaining for track or disc) |
| Front Panel LED Mode Indicators | Programming · Repeat (disc and track)· Random |
| DAC / Digital Filter | BurrBrown PCM1793 |
| Frequency Response (audible) | 20Hz – 20kHz +0/-0.2dB |
| Frequency Response (full range) | 2Hz – 72kHz +0/-3dB |
| THD @ 1kHz, 0dBFS (A-weighted) | < 0.004 % |
| IMD | < 0.007 % |
| Dynamic Range | > 108dB |
| Signal-to-noise ratio | > 108dB @ full output |
| Channel Separation | > 103dB |
| Low Level Linearity | ±1.0dB to below 120dBFS |
| Intrinsic Jitter | < 325 picoseconds RMS |
| Single-ended Analog Outputs | 1 pair RCA |
| Digital Output | S/PDIF (RCA) |
| Max. Analog Output @ 0dBFS – RCA | 2.0 Volts @ 100 Ω |
| Digital Output Impedance S/PDIF | 75 Ω @ 0.5 Volts |
| Available Faceplate Finishes | Black and Silver |
| Remote Control | CRM-2 Full Function |
| Power Consumption @ idle | 15 Watts |
| AC Power Requirements | 120V / 60Hz 240V / 50Hz |
| Fuse Replacement – 120V | 0.2A short slow blow |
| Fuse Replacement – 230V | 0.1A short slow blow |
| Shipping weight | 14 lbs / 6.25 kgs |
| Dimensions (W x H x D) | 16.9 x 3.5 x 13.1 in. (42.9 x 8.9 x 33.2 cm.) |
Features & specifications are subject to change without notice
D.G.
Prodotti correlati
Disponibile — consegna stimata: 5 giorni
Esaurito
Disponibile — consegna stimata: 5 giorni
Disponibile — consegna stimata: 5 giorni
Disponibile — consegna stimata: 5 giorni

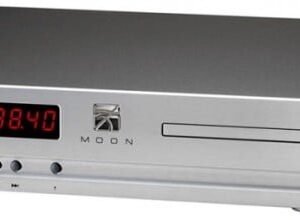

Lettore CD MOON – 230D 1.590,00€
