Lettore CD MOON – ANDROMEDA RS
50 Altri utenti stanno guardando questo prodotto ora
€18.000,00

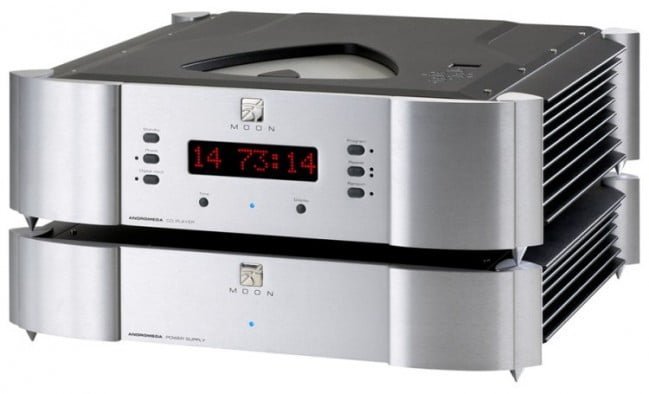

Lettore CD MOON – ANDROMEDA RS
[DISPLAY_ULTIMATE_SOCIAL_ICONS]
Garanzia di pagamento sicuro e protetto
The MOON Andromeda CD Player is a fully-balanced differential design, representing the next generation of MOON high-performance audio components. Using the very finest electronic components in conjunction with an astonishing 24-bit/705.6kHz internal upsampling circuit and several newly developed proprietary technologies, the Andromeda brings the Redbook CD standard to previously unattainable performance levels. Further raising the bar, the MOON Andromeda can be fully integrated into a custom-install environment via an RS-232 port. As well, a plethora of user selectable cosmetic options are available at the time of purchase. |
| Significant Design Features: · Internal 24-bit/705.6kHz upsampling using BurrBrown DF1704 Digital Filter with 16X oversampling · Four precision matched 24-bit BurrBrown PCM1704U-K "Digital To Analog" converters · Full unsolicited RS-232 bidirectional feedback · Digital input for use as a digital-to-analog converter with a music server or external transport · Custom proprietary toroidal transformer design with lower magnetic, electrical and thermal loss, yielding an improved power transfer and lower regulation factor. The result is increased current speed and better dynamics · Separate digital and analog power supplies housed in an external chassis · SimLink controller port for 2-way communications with other compatible MOON components · Philips CD-Pro 2M transport mechanism mounted on our gel-based Delta suspension · MOON Alpha Clocking System with PLL synchronization yielding 5 PPM of jitter · Power supply voltage regulation includes i²DCf (Independent Inductive DC Filtering); There is one inductor dedicated to each integrated circuit type component (DAC, Op-Amp, etc.) in the audio circuit’s signal path – 56 stages in all · Top loading drawer with custom design disc clamping for improved stability and long term reliability · A proprietary 6db/octave analog filter · 4-Layer PCB’s with pure copper tracings for a much shorter signal path; This results in greater sonic accuracy and a dramatically improved signal-to-noise ratio · Ultra rigid chassis construction to minimize the effects of external vibrations · Accurate matching of the very finest quality electronic components in a symmetrical circuit design · Designed to be powered up at all times for optimal performance · Includes FRM-2 remote control. |
Overseas MOON Andromeda RS
The RS series of MOON audio components benefit from an even higher standard of manufacturing process than the regular MOON versions. All significant differences are contained within the circuitry and construction of each model.
RS versions are built using different materials and parts in certain areas. For example, printed circuit boards are of a higher temperature grade than that of the military specification FR-4 material we normally use; Their traces are gold-plated instead of a tin/lead composite. As well, all capacitors use improved dielectric materials.
MOON RS models meet and/or exceed stricter manufacturing processes as required to pass many international safety standards such as those imposed by the E-U, Japan and South Korea. Cosmetically, the ONLY difference is the RS logo on the front panel.
RS versions are built using different materials and parts in certain areas. For example, printed circuit boards are of a higher temperature grade than that of the military specification FR-4 material we normally use; Their traces are gold-plated instead of a tin/lead composite. As well, all capacitors use improved dielectric materials.
MOON RS models meet and/or exceed stricter manufacturing processes as required to pass many international safety standards such as those imposed by the E-U, Japan and South Korea. Cosmetically, the ONLY difference is the RS logo on the front panel.
| Type | Solid State |
| Configuration | Dual-Mono / Fully balanced |
| Front Panel Controls | Standby · Phase · Digital Input · Time · Display · Program · Repeat · Random |
| Front Panel Display | Track number · Time – elapsed or remaining (track / entire disc) |
| Front Panel LED Indicators | Phase · Digital Input · Program · Random · Repeat – track · Repeat – disc |
| Top Panel Controls | Play · Pause · Stop · Previous & Next track · Forward & Backward scan current track |
| Top Panel Display | Current track number |
| Digital Filter | BurrBrown DF1704 |
| Digital-to-Analog Converters (4) | BurrBrown PCM1704U-K |
| Frequency Response (audible) | 20Hz – 20kHz +0/-0.1dB |
| Frequency Response (full range) | 5Hz – 56kHz +0/-3dB |
| THD @ 1kHz, 0dBFS (A-weighted) | < 0.001 % |
| IMD | < 0.003 % |
| Dynamic Range | > 120dB |
| Signal-to-noise ratio | > 125dB @ full output |
| Slew Rate | 50V/µs |
| Channel Separation | > 118dB |
| Low Level Linearity | < ±0.5dB at -90dBFS |
| Intrinsic Jitter | < 10 picoseconds RMS |
| Analog Outputs – Balanced | 1 pair XLR |
| Analog Output – Single-ended | 1 pair RCA |
| Digital Input | S/PDIF BNC |
| Digital Outputs | S/PDIF BNC and AES/EBU XLR |
| Max. Analog Output @ 0dBFS – XLR | 4.0 Volts |
| Max. Analog Output @ 0dBFS – RCA | 2.0 Volts |
| Analog Output Impedance | 50 Ω |
| Digital Output Impedance S/PDIF | 75 Ω @ 0.5Vp-p |
| Digital Output Impedance AES/EBU | 110 Ω @ 3.7Vp-p |
| SimLink Port | 1 input + 1 output each on 1/8" mini-jack |
| RS-232 Port | 9-pin female DB connector |
| IR input | 1/8" mini-jack |
| Remote Control | FRM-2 All-Aluminum Full Function |
| Display Type | 8 character dot matrix LED |
| Power Consumption @ idle | 25 watts |
| AC Power Requirements | 120V / 60Hz 240V / 50Hz |
| Fuse Replacement – 120V | 0.5A short slow blow |
| Fuse Replacement – 230V | 0.25A short slow blow |
| Shipping weight | 79 lbs / 35 Kgs |
| Dimensions – CD Player (w x h x d) | 18.8 x 5.6 x 16.8 in. |
| Dimensions – Power Supply | 18.8 x 3.9 x 16.2 in. |
Features & specifications are subject to change without notice.
