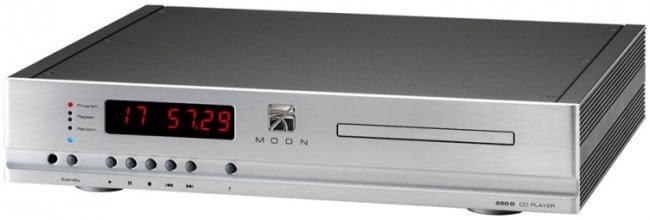

Lettore CD MOON – 260D
42 Altri utenti stanno guardando questo prodotto ora
€1.900,00
Lettore CD MOON – 260D
[DISPLAY_ULTIMATE_SOCIAL_ICONS]
Garanzia di pagamento sicuro e protetto
The MOON 260D Player is the perfect companion source component for the 250i Integrated Amplifier. Incorporating technologies found in our highly acclaimed MOON CD players, the 260D uses highly advanced digital and analog circuitry to produce an astounding level of sonic performance with no equal in its price range. With features including a fully customized CD transport mechanism, a bidirectional RS-232 port, a large easy-to-read display, an IR input for external control, and luxurious industrial build quality, theMOON 260D will provide for many years of listening pleasure and hassle-free use.
|

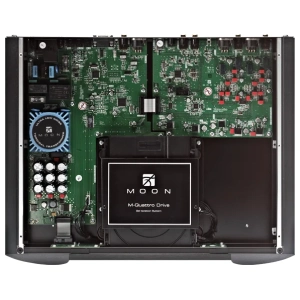

| Significant Design Features: · Ultra-low noise toroidal transformer driven power supply with 8 stages of DC voltage regulation · Internal upsampling with 24-bit/352.8kHz processing · Proprietary M-ProDrive transport mechanism with in-house developed hardware & software · BurrBrown PCM1793 high-resolution 24-bit/192-kHz DAC and 8X oversampling digital filter · RS-232 port for (i) full unsolicited bidirectional feedback and (ii) firmware updates · IR input for external control · SimLink controller port for 2-way communications with other compatible MOON components · All digital and analog audio circuitry mounted on a single circuit board, each with their own respective ground plane, to minimize signal path lengths and eliminate any potential for interference and signal degradation · MOON Alpha Clocking System for exceptionally low intrinsic jitter levels · Advanced analog signal path using a DC servo circuit and proprietary analog filter · PCB w/ pure copper tracings & gold plating that yields low impedance characteristics · Top cover is mounted with countersunk screws · Optimized selection of very high quality electronic components · Designed to be powered up at all times for optimal performance · Includes CRM-2 remote control. |
| Configuration | Single-ended |
| Transport Mechanism | Proprietary Design |
| Front Panel Controls | Stand by · Play · Pause · Stop · Previous Track · Next Track· Open / Close |
| Front Panel Display | Track number · Time (elapsed or remaining for track or disc) |
| Front Panel LED Mode Indicators | Programming · Repeat (disc and track)· Random |
| DAC / Digital Filter | BurrBrown PCM1793 |
| Frequency Response (audible) | 20Hz – 20kHz +0/-0.2dB |
| Frequency Response (full range) | 2Hz – 72kHz +0/-3dB |
| THD @ 1kHz, 0dBFS (A-weighted) | < 0.002 % |
| IMD | < 0.005 % |
| Dynamic Range | > 110dB |
| Signal-to-noise ratio | > 110dB @ full output |
| Channel Separation | > 106dB |
| Low Level Linearity | ±1.0dB to below 120dBFS |
| Intrinsic Jitter | < 300 picoseconds RMS |
| Single-ended Analog Outputs | 1 pair RCA |
| Digital Output | S/PDIF (RCA) |
| Max. Analog Output @ 0dBFS – RCA | 2.0 Volts @ 100 Ω |
| Digital Output Impedance S/PDIF | 75 Ω @ 0.5 Volts |
| SimLink Port | 1 input + 1 output each on 1/8" mini-jack |
| RS-232 Port | 9-pin female DB connector |
| IR input | 1/8" mini-jack |
| Available Faceplate Finishes | Black and Silver |
| Remote Control | CRM-2 Full Function |
| Power Consumption @ idle | 15 Watts |
| AC Power Requirements | 120V / 60Hz 240V / 50Hz |
| Fuse Replacement – 120V | 0.2A short slow blow |
| Fuse Replacement – 230V | 0.1A short slow blow |
| Shipping weight | 14 lbs / 6.25 kgs |
| Dimensions (W x H x D) | 16.9 x 3.4 x 13.1 in. (42.9 x 8.6 x 33.3 cm.) |
Features & specifications are subject to change without notice.
