DIFFUSORE PAVIMENTO JAMO S 626

Design

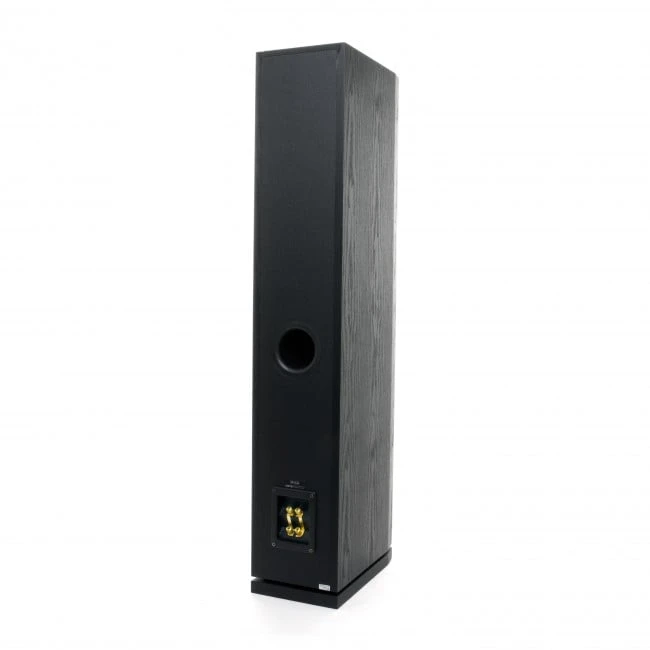

The Jamo S 626 is an exceptional 3-way speaker featuring a side-mounted 8-inch woofer for a slim, cohesive design without an accompanying sacrifice in sound quality. The “mirror image” speaker pairs give you placement flexibility for the best possible acoustic interaction with your listening room. The S 626 is available in White Ash, Dark Apple and Black Ash finishes, complemented by soft-feel black baffles giving the speaker a premium appearance. The Jamo S 626 is fully equipped for optional bi-wiring and bi-amplification and includes optional speaker spikes.
Read Less

Technology
1-inch (25 mm) soft dome tweeter/dual 5-inch (127 mm) aluminized midrange drivers/ 8-inch (203 mm) side-firing woofer.
Bass-reflex design with flared, rear-firing port:Increases system efficiency and bass output.
Waveguide: Provides more uniform dispersion in the critical frequency range of 2-10 kHz. Dynamics and clarity are enhanced while distortion is significantly reduced.
Aluminum centre-plug: Eliminates cone breakup for faster “attack” and increased vocal clarity. Additional voice-coil cooling reduces power compression.
Aluminized midrange drivers:Increases cone rigidity and vocal clarity.
Side-firing woofer:Provides a slimmer cabinet design and bass optimization for varying room acoustics.
Dual,5-way binding posts: Allows bi-wiring/bi-amplification with multiple connection options with wire up to 12 gauge (AWG).

System Type 3 Way Bass Reflex
Impedance 6
Weight (Kg/lb) 23.5 / 51.8
Tweeter (mm/in) 25 / 1
Woofer (mm/in) 203 / 8
Product dimensions (mm/in, HxWxD) 1080 x 190 x 345 / 42.5 x 7.5 x 13.6
Frequency Response (Hz, +/-3dB) 42-20,000
Power Handling (Watts Long/Short Term) 130 / 210
Sensitivity (dB, 2.8V/1m) 89
Midrange (mm/in) Dual 127 / 5
Crossover Frequency 150 / 2500
Finish Black Ash, Dark Apple, White Ash
