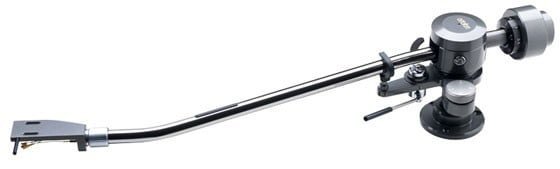

BRACCIO LETTURA ORTOFON TA-210

Braccio a S da 12″ in alluminio con materiale composito gommoso all’interno, tecnica TPE, per ridurre le vibrazioni indesiderate.

• Tipo statico con articolazione su cuscinetti.
• Adatto sia per testine a bassa che ad alta massa (possibile aggiunta di anello aggiuntivo gr.45 con scala valori interna, in dotazione).
• Cavo 6NX-TSW 1010 in dotazione.
• Shell portatestina LH-2000 in dotazione.

TA-210 Technical data

Effective mass without headshell: 5 g

Effective armlength (distance between the stylus and pivot point): 329.0 mm

Mounting distance (distance between the pivot point and turntable center): 316.6 mm

Offset angle: 16.5 degrees

Overhang: 12.4 mm

Tracking force adjusting range (direct reading): 0-3/0-4 g

Height adjustment range: 35-55 mm

Diameter of the armbase mounting hole: 19-20 mm

Diameter of the center shaft of tonearm: 18.0 mm

Inner null point: 66 mm

Outer null point: 120.9 mm

Counterweight for cartridge + headshell mass between 21 and 28g included

Headshell LH-2000E included

Headshell weight: 15.5 g

TA-210 total weight including headshell: 536 g

Set of tonearm cables 6NX-TSW-1010 included

Extra mass ring for heavier cartridges included

Extra mass ring weight: 45 g
