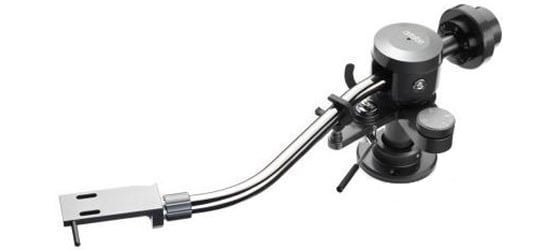

BRACCIO LETTURA ORTOFON TA-110

Braccio a S da 9″ in alluminio con materiale composito gommoso all’interno per ridurre le vibrazioni indesiderate. Tipo statico con articolazione su cuscinetti. Adatto sia per testine a bassa che ad alta massa (due pesi aggiuntivi in dotazione). Cavo 6NX-TSW 1010 in dotazione. Shell portatestina LH-2000 in dotazione.

TA-110 Technical data

Effective mass without headshell: 3.5 g

Mass of supplied headshell: 15.5 g

Effective armlength (distance between the stylus and pivot point): 231.0 mm

Mounting distance (distance between the pivot point and turntable center): 213.0 mm

Offset angle: 23.9 degrees

Overhang: 18.0 mm

Tracking force adjusting range (direct reading): 0-3 g

Height adjustment range: 35-55 mm

Diameter of the armbase mounting hole: 19-20 mm

Diameter of the center shaft of tonearm: 18.0 mm

Inner null point: 66 mm

Outer null point: 120.9 mm

Counterweight for cartridge + headshell mass between 21 and 28 g included

Headshell LH-2000E included

Headshell LH-2000E weight: 15.5 g

TA-110 total weight including headshell: 470 g

Set of tonearm cables 6NX-TSW-1010 included

Extra mass ring for heavier cartridges included

Extra mass ring weight 45 g
