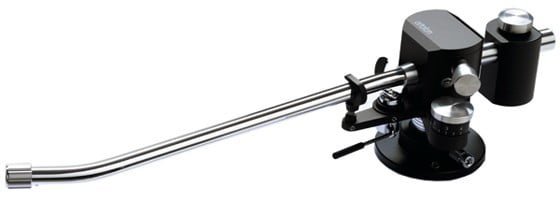

braccio-lettura-ortofon-rs-309-d

Effective mass (without headshell): 4.0 g

Effective length (distance between the stylus and pivot point): 329 mm

Mounting distance between the pivot point and turntable center: 314 mm

Offset angle: 19 degrees

Overhang: 15 mm

Tracking force adjusting range (direct reading): 0 – 5 g

Height adjustment range: 42 mm – 57 mm

Diameter of  the armbase mounting hole: 34 mm – 36 mm

Diameter of the center shaft: 16 mm

Fixing holes PCD: dia. 50 mm

Size/Thread: dia. 3.2 mm (dia. 3 mm x 20 mm and dia. 3 mm wood screw)

Digital scale DS-1 included

Headshell SH-4 Black included, headshell weight 9.4 g, screws weight 2 g
