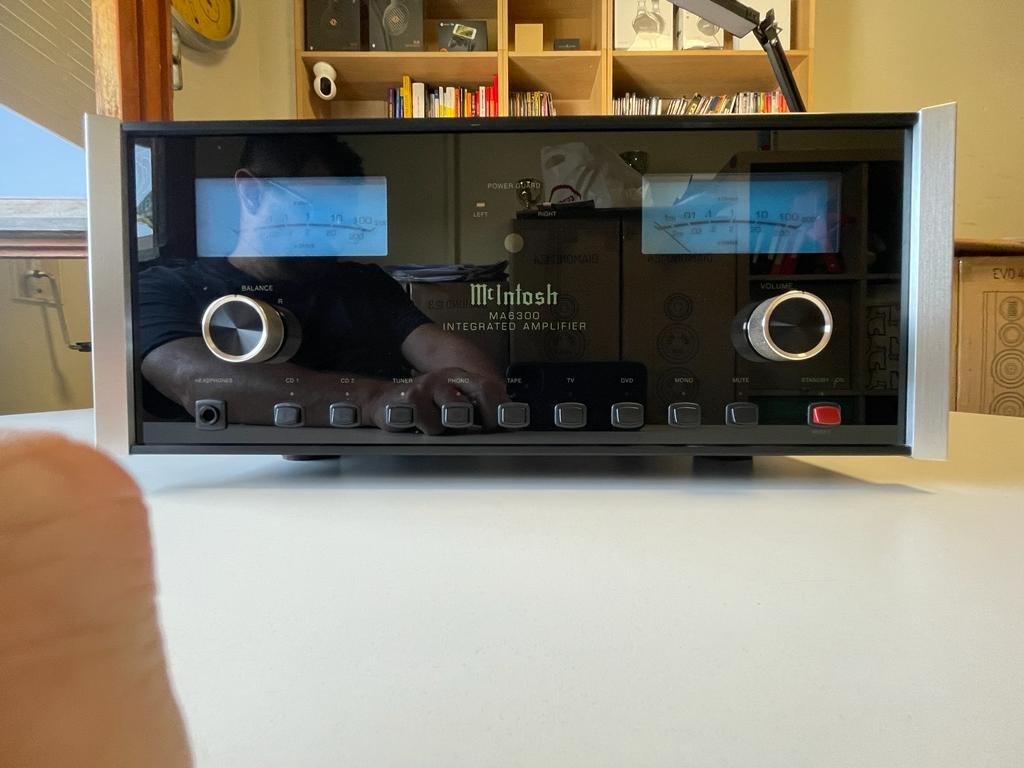

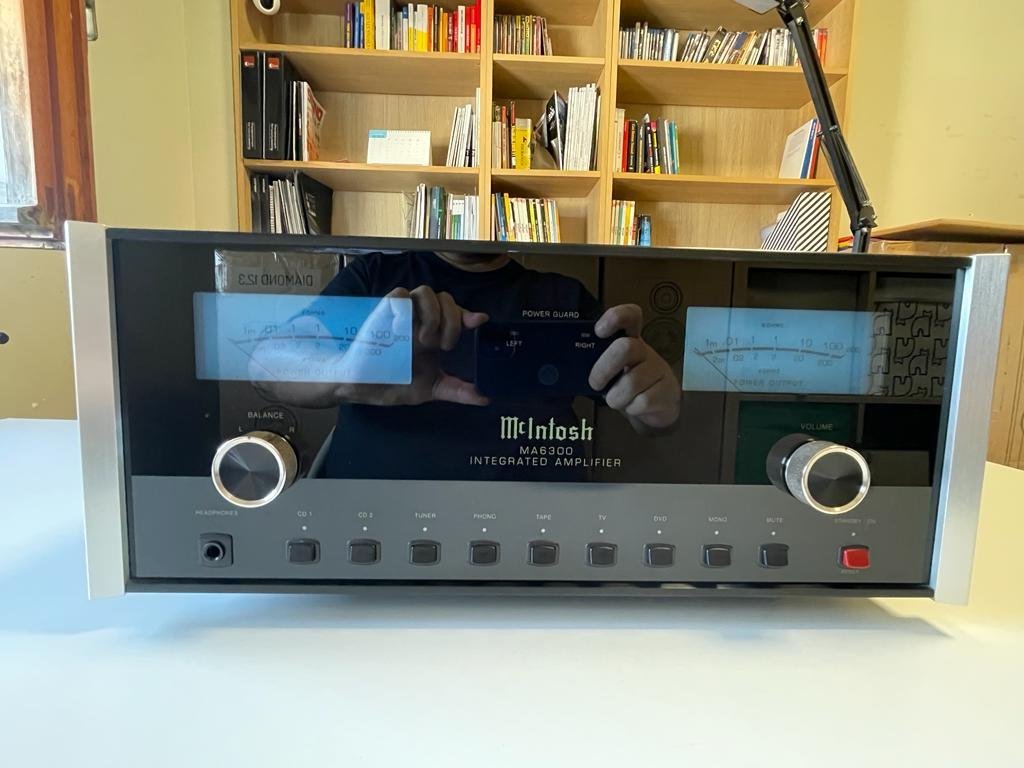

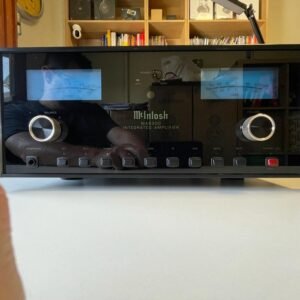

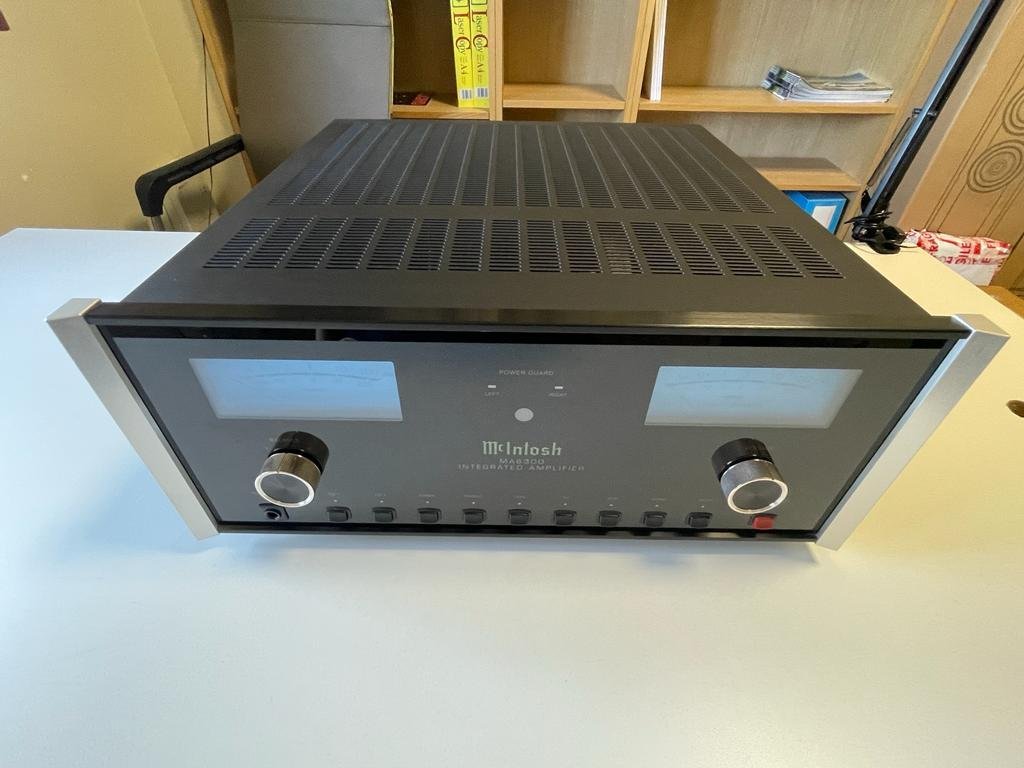

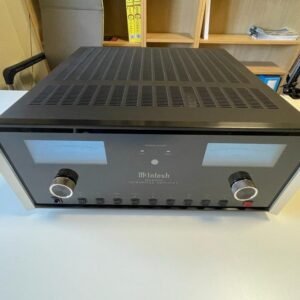

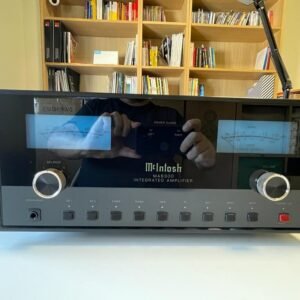

MCINTOSH MA 6300

CODICE 0603005

AMPLIFICATORE INTEGRATO DA 2 X 100 W/8 W (160 SU 4) – 5 INGRESSI LINEA 1 PHONO E 1 INGRESSO CD BILANCIATO – USCITA TAPE – VU METER – POWER GUARD – CONTROLLO DI BILANCIAMENTO E FUNZIONE MONO – USCITA CUFFIA – TELECOMANDO – DIMENSIONI: 44,5 X 19,37 X 5,88 CM – PESO: 16,8 KG

With 100 watts per channel into 8 ohms and 150 watts into 4 ohm loads, the MA6300 can effortlessly power virtually anyspeaker from one of seven source selections: CD1, CD2, Tuner, Phono, Tape, TV and DVD. Featured in the MA6300 is a dedicated, high performance headphone amplifier boasting low noise, extended frequency response and featuring ample gain to drive the finest quality headphones to life-like levels.

ELECTRONIC SPECIFICATIONS

POWER OUTPUT PER CHANNEL

100 Watts into 8 ohms
150 Watts into 4 ohms

SPEAKER IMPEDANCE

4 or 8 Ohms

RATED POWER BAND

20Hz to 20kHz

TOTAL HARMONIC DISTORTION

0.005%

DYNAMIC HEADROOM

1.4dB

FREQUENCY RESPONSE +0,-0.5DB

20Hz to 20kHz

FREQUENCY RESPONSE, +0, -3DB

10Hz to 100kHz

SENSITIVITY PHONO (MOVING COIL)

N/A

SENSITIVITY PHONO (MOVING MAGNET)

2.5mV

SENSITIVITY HIGH LEVEL (BALANCED / UNBALANCED)

0.5V/0.25V

SENSITIVITY (POWER AMP)

SIGNAL TO NOISE RATIO (MOVING COIL)

N/A

SIGNAL TO NOISE RATIO (MOVING MAGNET)

84dB

SIGNAL TO NOISE RATIO (HIGH LEVEL)

97dB

SIGNAL TO NOISE RATIO (POWER AMP)

110dB

INPUT IMPEDANCE (BALANCED / UNBALANCED)

20K/20K

DAMPING FACTOR

>200 @ 8 Ohms

MAXIMUM OUTPUT (BALANCED / UNBALANCED)

8V Unbalanced

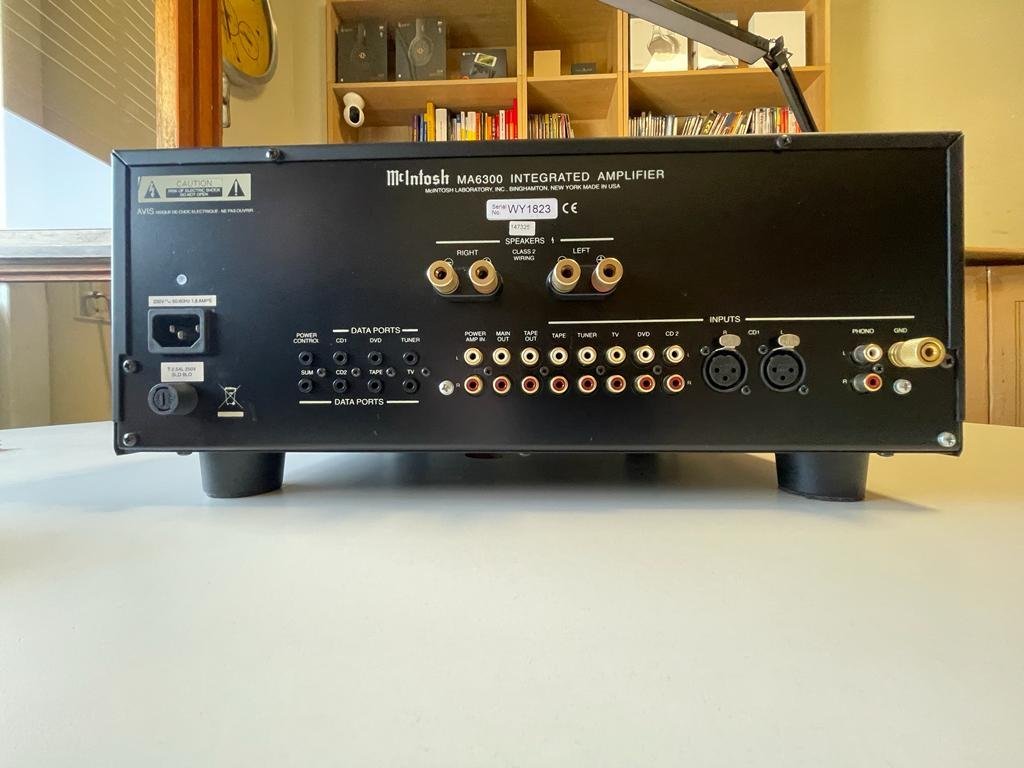

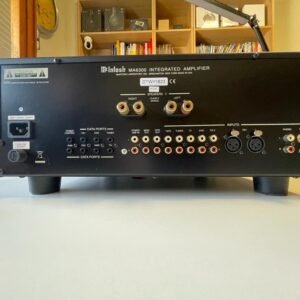

CONNECTIVITY

HEADPHONE OUTPUT

Yes

HIGH LEVEL INPUTS UNBALANCED

5 Stereo

HIGH LEVEL INPUTS BALANCED

1 Stereo

VARIABLE OUTPUTS UNBALANCED

1 Stereo

VARIABLE OUTPUTS BALANCED

DIGITAL USB INPUT

DIGITAL COAXIAL INPUT

DIGITAL OPTICAL INPUT

PHONO MOVING MAGNET

Yes

PHONO MOVING COIL

AM/FM TUNER OPTION

HOME THEATER PASS THROUGH

CONTROL

TONE CONTROLS

TONE BYPASS AND INPUT ASSIGN

RS232 CONTROL INPUT

POWER CONTROL OUTPUT

Yes

REAR PANEL DATA PORTS

Yes

REAR PANEL IR SENSOR INPUT

INPUT LEVEL MATCH

GENERAL SPECIFICATIONS

DUAL LAYER CHASSIS

OUTPUT METERS

Yes

TUBE OR SOLID STATE

Solid State

POWER REQUIREMENT

120V 50/60Hz, 3.2A

STANDBY POWER REQUIREMENT

N/A

OUTPUT AUTOFORMER

WEIGHTS & DIMENSIONS

DIMENSIONS (W X H X D)

17-1/2″ (44.45cm) x 7-5/8″ (19.37cm) x 22″ (55.88cm)

WEIGHT

37 lbs (16.8 kg)

SHIPPING WEIGHT

55 lbs (25 kg)

Potrebbe piacerti anche...

Consigliato per voi Aggiorna

Sign up today and you will be able to:

amplificatore-stereo-integrato-mcintosh-ma-6300-usato

Garanzia: 1 anno dalla data di acquisto fornita dal Rivenditore Altovolume.

Spedizione: Effettuata con Pallet tramite Corriere Espresso.

Consegna: Prevista entro 24 ore dall’ordine.

Assicurazione: Copre l’intero importo dell’amplificatore.

Anni di vita: 5

Imballi e documenti: ORIGINALI

Telecomando: Incluso nella confezione.
