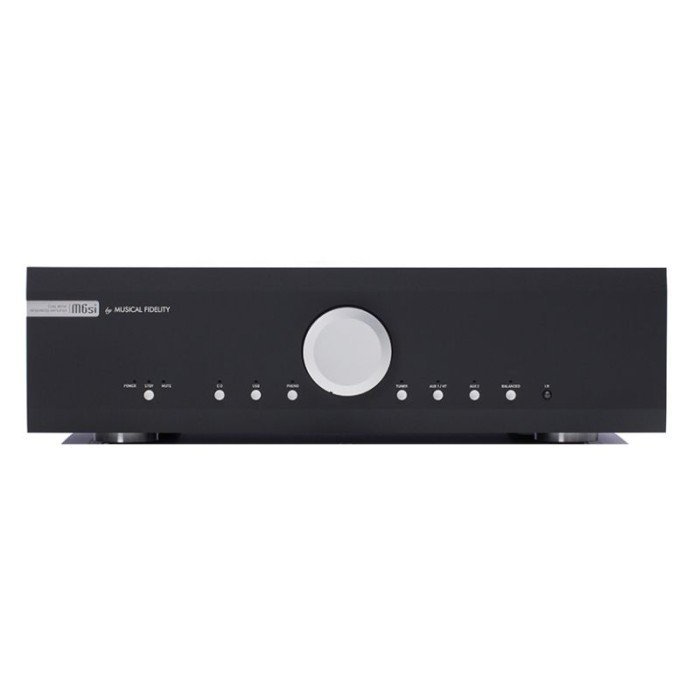

M6si – Specifications

Amplifier

• Power output: 220 Watts per channel into 8 Ohms
• THD (+ noise): <0.007 % typical 20Hz – 20 kHz
• Signal to Noise Ratio: >107dB ‘A’ – weighted
• Frequency Response: +0, –0.1dB, 10Hz to 20 kHz

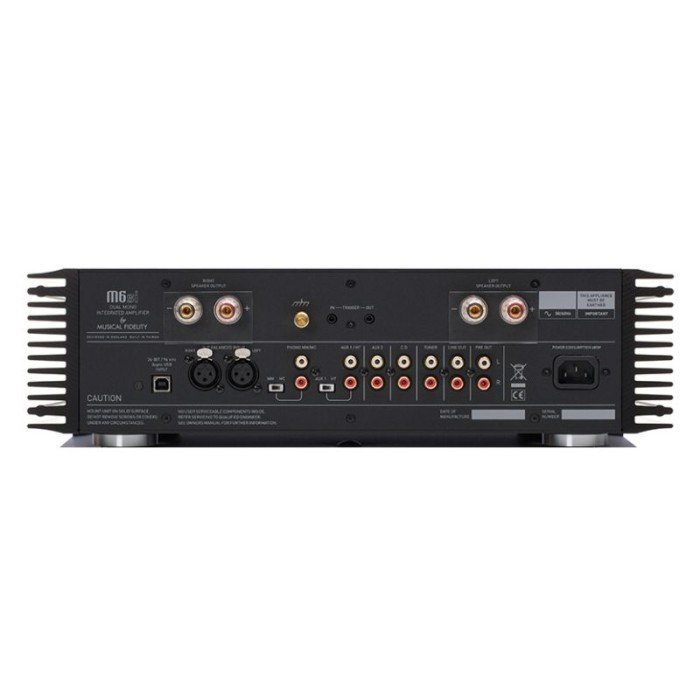

Inputs

• 4x Line Level RCA
• 1x Line Level XLR Balanced
• 1x USB type ‘B’ connector – asynchronous data stream at up to 24-bit/96kHz
• 1 x switchable phono input
• Trigger in

Phono Input

• Sensitivity: 3mV nominal (MM), 0.4mV nominal (MC)
• Signal / noise ratio: >84dB ‘A’-weighted
• Input impedance: 47k Ohms (MM and MC)
• Frequency response: RIAA/IEC ±0.5dB 20Hz-20kHz

Outputs

• Trigger out

General

• Dimensions – WxHxD (mm): 440 x 125 x 400
• Weight (unpacked / packed): 16.6 kg/ 21.3 kg
