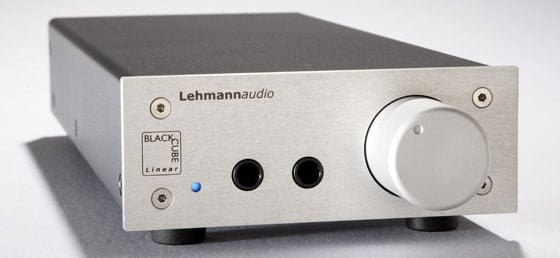

AMPLIFICATORE CUFFIE LEHMANN AUDIO LINEAR USB
Amplificatore High End per cuffie con DAC per ingresso USB. Stadio d’uscita in Class-A senza controreazione. Potenziometro del volume Alps. Due uscite per cuffia in parallelo. Due ingressi uno con RCA dorati e l’altro con USB prioritario. Possibilità di selezione del guadagno: 0dB/10dB/20dB. Alimentazione con trasformatore toroidale.
| Linear |
| Analogue section |
|
| Input impedance |
47 kohms |
| Maximum gain |
0 dB, 10 dB, 18 dB, 20 dB selectable via DIP switches |
| Frequency response |
10 Hz (-0.3 dB) to 35 kHz (-1 dB) |
| Signal to noise ratio |
> 95 dB at gain 0 dB |
| THD |
< 0.001 % at 6 mW/300 ohms |
| Channel separation |
> 70 dB at 10 kHz |
| Output power |
400 mW/60 ohms 200 mW/300 ohms |
| Output impedance |
Line Out 60 ohms Headphones Out 5 ohms |
| Connectors audio |
Neutrik headphone jacks with gold plated contacts 1 x switching Line Out 1 x non switching Line Out gold plated RCA sockets with teflon insulation Linear USB: Mini jack Stereo (Loop Out/Line In) 3.5 mm |
| Power consumption |
10 W |
| Outer dimensions W x D x H |
110 mm x 280 mm x 50 mm |
| Weight |
1.5 kg netto |
| USB-DAC (Linear USB) |
|
| Sampling rate digital |
up to 48 kHz |
| Resolution |
16 Bit |
| Maximum voltage |
1 V eff. |
