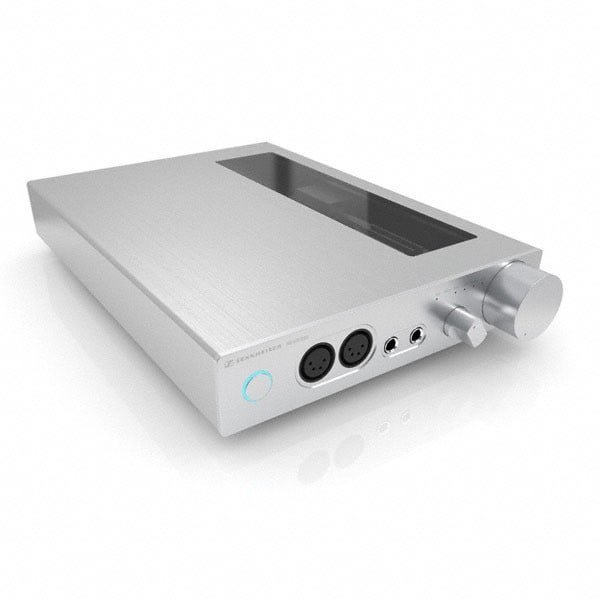

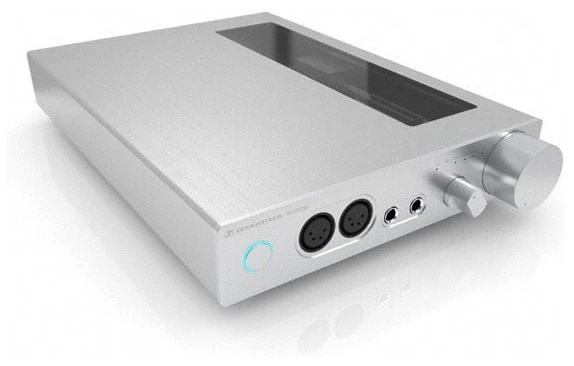

With Sennheiser’s HDVD 800, sound is perfect. The HDVD 800 is able to connect with digital sources and is equipped with a high-quality Burr-Brown digital/analog converter (DAC) that converts digital audio data into analog signals with a resolution of 24 bits and a sampling rate of up to 192 kHz. This enables the HDVD 800 to transmit the entire frequency spectrum of high-end audio sources without any loss of frequencies.

In addition to the symmetrical inputs, the HDVD 800 also has an asymmetrical input socket; incoming signals are symmetrized before further processing takes place. Digital sources can be connected to the rear of the unit via an XLR (AES/EBU) input, optical and coaxial (S/PDIF) digital inputs or USB. All digital inputs accept signals up to 24 bit at 192 KHz*. Designed and manufactured in Germany, this high-end, solid-state amplifier harmonize perfectly and deliver an ultimate acoustic performance when paired with any of Sennheiser’s audiophile headphones.

Features
D/A transducer for all common formats up to 24 bit / 192 kHz
D/A transducer can be used for CD and DVD players
AES/BU, S/PDIF, USB inputs
Symmetrical (XLR) and asymmetrical (RCA) analog inputs
Symmetrical output
Sockets for four sets of headphones (two of which symmetrical)
Related Press News
Perfect Sound in an Award-Winning Design – Sennheiser headphones amplifiers win ‘best of the best’ design award
Three times a winner: Sennheiser products win the iF Design Award 2013
imensions (W x H x D): approx. 216 mm x 55 mm x 324 mm
Frequency response 0.3 Hz to 100 kHz (-3 dB)
THD, total harmonic distortion < -110 dB (1 kHz / maximum gain) Weight 2,2 Kg Audio input Analogue input XLR-3 : Max. input voltage 20 dBV / Input impedance 10 kOhm Analogue input RCA: Max. input voltage (eff) 14 dBV / Input impedance 10 kOhm Digital SPDIF (RCA): Max. sampling frequency 192 kHz /AES3-compatible) / Max. resolution 24 bit Digital SPDIF (TosLink): Max. sampling frequency: 88,2 kHz (AES3-compatible) Max. resolution: 24 bit Digital AES/EBU (XLR-3): Max. sampling frequency: 192 kHz (AES3-compatible) / Max. resolution: 24 bit USB (USB-B) USB standard: USB 2.0 / USB 3.0 USB audio class: USB Audio 2.0 Power consumption 9 W Input voltage range 100-240 V AC / 50-60 Hz MS
