Name: CH Precision X1 | Alimentatore Esterno
Brand: Ch Precision
SKU: 3846
Price: 13500 EUR
Availability: InStock

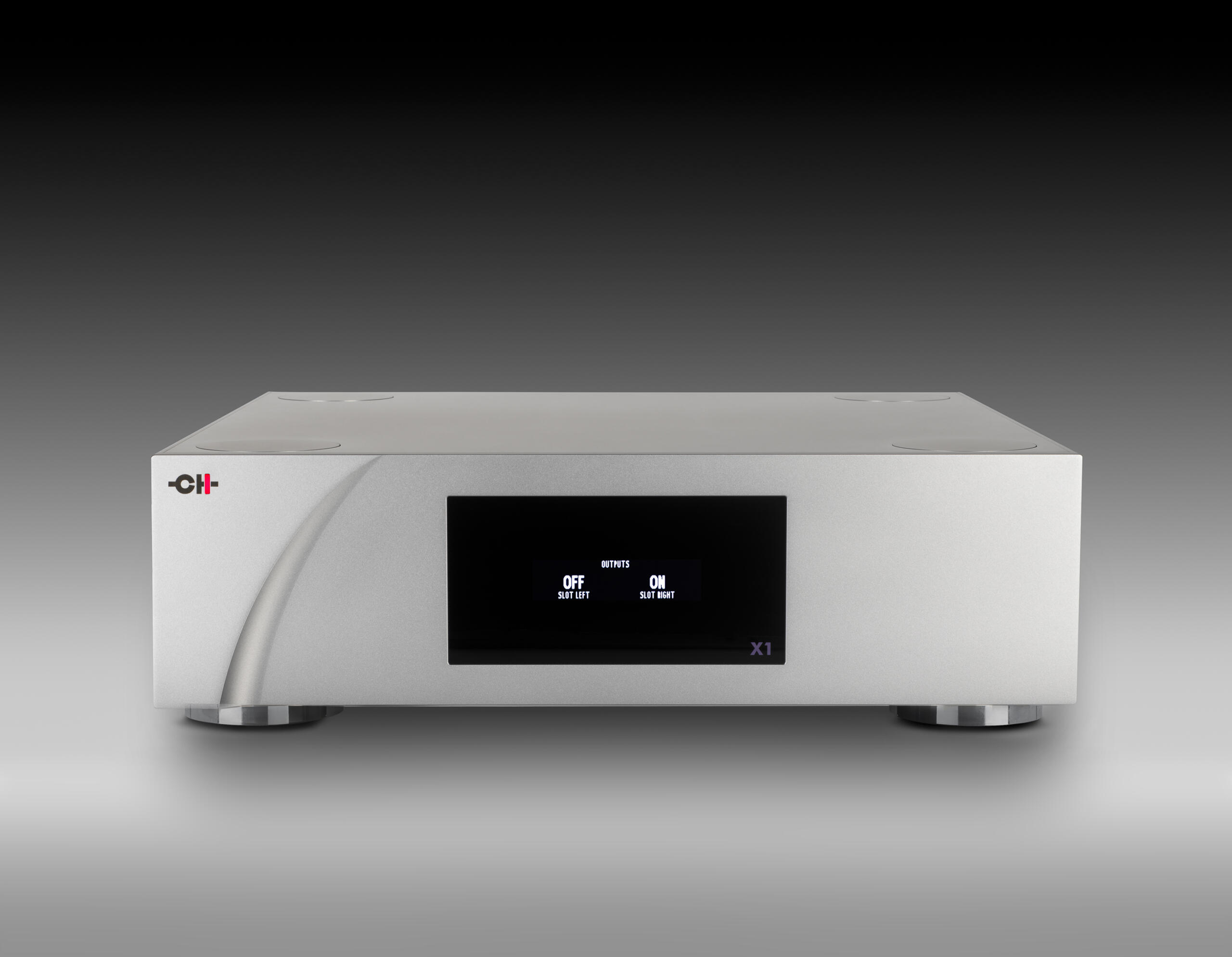

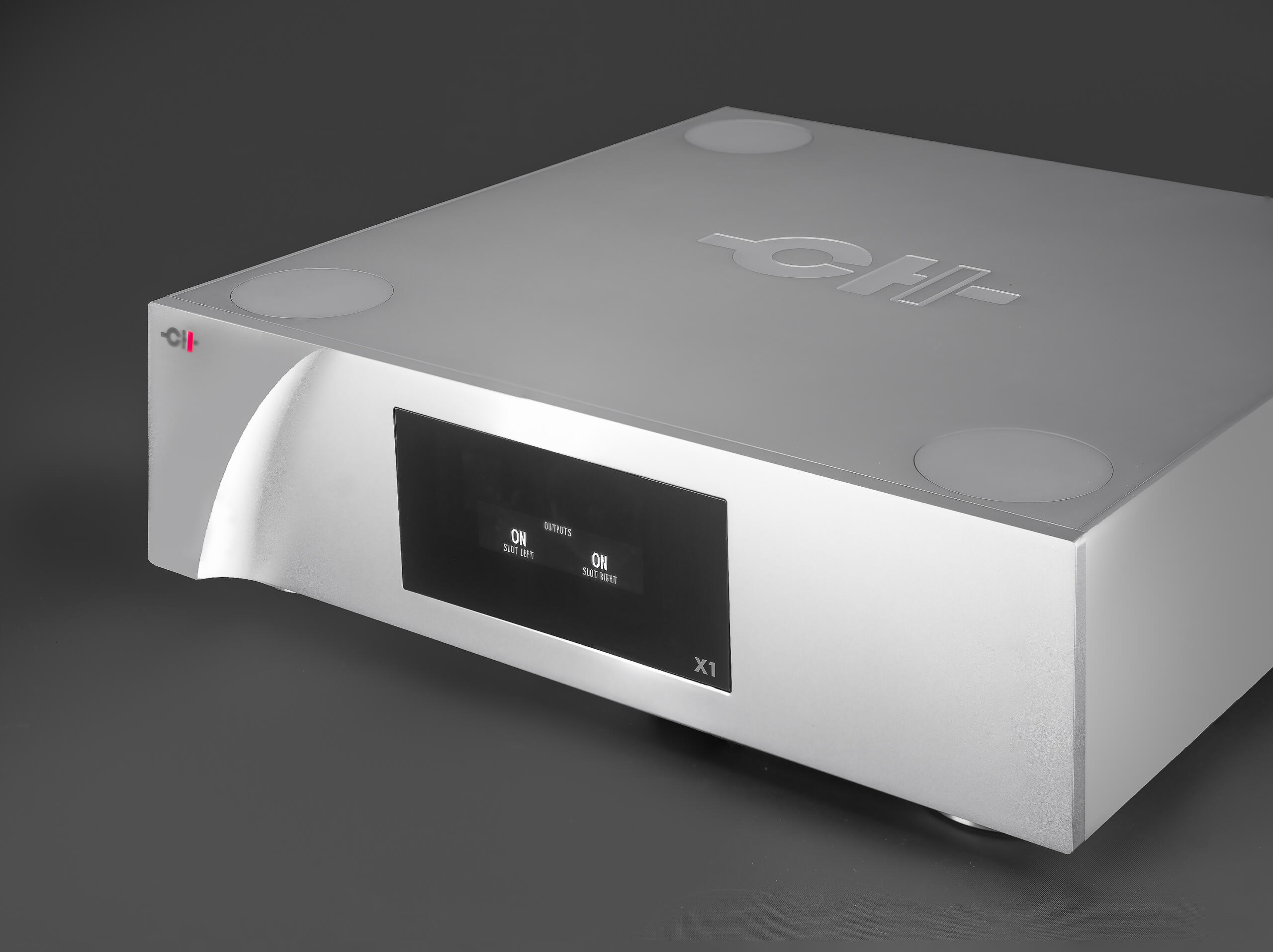

ALIMENTATORE CH PRECISION X1

Stadio di alimentazione esterno. Ideale come upgrade per le unità D1, C1 e L1 attraverso un cavo fornito a 23 poli. Due trasformatori separati per l’alimentazione di stadi analogici e digitali. Filtro di isolamento galvanico sulla tensione di ingresso. Circuiti di regolazione a cascata per la massima immunità al rumore. Possibilità di alimentare due unità separate, attraverso la scheda opzionale Regulator.

Altre caratteristiche

Dedicated mains fi lter on each transformer primary
Cascaded power supply regulation stages for superior noise rejection
Two oversized power transformers dedicated to the digital and analog power supply sections, respectively
Allows the connected machine’s mains transformer to remain turned Off for added noise immunity
Preserved galvanic isolation between connected machines if two units are connected to a single X1
Up to two units can be connected to a single X1 (with the addition of second regulation board)
Housed in the same mechanical enclosure as the rest of the 1 Series units

Connections

Back panel	M23 connector matching the machine’s external power supply connector
Cable	2 meter cable with M23 connectors on both ends

Protections

Digital supplies	Over- and under-voltage rails check Over-current monitoring
Analog supplies	Over- and under-voltage rails check Over-current monitoring

General

Auto On/Off	Remotely operated from the connected machine(s)
Display	256×64 pixels white PMOLED
Mains operation	Selectable 100V, 115, 230V AC, 47-63Hz
Power supply consumption	<1W (standby), up to 200W in operation
Dimensions/Weight	440 x 440 x 120mm (W x D x H), 25kg
