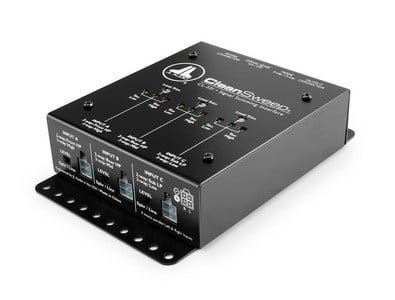

JL Audio CS-SSI | Sommatore di canali per CL 441 DSP

he CleanSweep® CL-SSI is the industry’s first dedicated signal summing interface and is easily configured to merge 2-way or 3-way OEM signals prior to sending them into a CL441dsp for response correction. This makes it the perfect choice for integrating with OEM sound systems that do not present full-range audio signals.
In 2-Way, 4-channel mode, the CL-SSI will accept front high-pass, rear high-pass and subwoofer low-pass signals from a factory audio system and sum the subwoofer signal to both the front and rear signals. The subwoofer input includes a noise filter to remove hiss commonly present in the signal of factory subwoofer amplifiers.
In 3-Way, 2-channel mode, the CL-SSI will accept high-pass, bandpass and subwoofer low-pass signals from a factory audio system and sum all three together in each audio channel, providing a 2-channel output. The subwoofer input includes a noise filter to remove hiss commonly present in the signal of factory subwoofer amplifiers.
Each input features a line-level or speaker-level switch and adjustment potentiometers with calibration lights to aid in level-matching. Use of the CleanSweep Calibration CD is required for level-matching.
The CL-SSI provides a direct plug-in output harness for connection to the input plug of the CL441dsp.
Width (W) 4.36 in / 111 mm
Height (H) 1.52 in / 39 mm
Depth (D) 5.02 in / 128 mm
Net Weight 1.4 lb / 0.64 kg
