2-Way Component System: 6.5-inch (165 mm) Woofer, 0.5-inch (12 mm) Textile Balanced Dome Tweeter
The Evolution TR systems have stood the test of time by delivering unsurpassed value and performance in their price class.

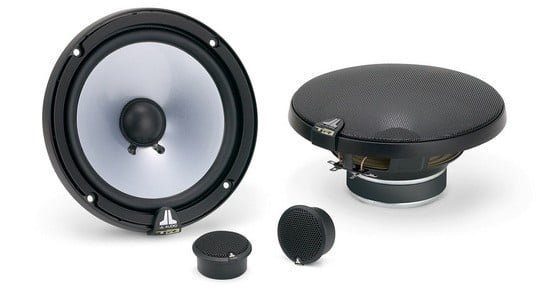

The TR-650 system features 6.5-inch (165 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio’s vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
The TR component tweeters are built with 0.5-inch textile diaphragms that deliver clean response, on and off axis. The tweeters can be flush-mounted or surface-mounted with the supplied fixtures.
An inline 12 dB / octave high-pass filter is pre-wired onto the tweeter connection harness, which connects to the woofer terminals, eliminating a bulky outboard crossover network and simplifying installation.
Woofer grilles are included, each consisting of a black grille tray featuring the JL Audio logo and a black steel mesh grille insert.
Sonic character: Clear and Efficient
Sold asontinuous Power Handling (RMS) 50 W
Peak Music Power 225 W
Recommended RMS Amplifier Power (per Ch.) 10 – 75 W
System Efficiency 91.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 59 Hz – 22 KHz ± 3 dB
a pair.
