DIFFUSORI SCAFFALE-LIBRERIA KEF THE REFERENCE 1 SATIN AMERICAN WALNUT

REFERENCE 1

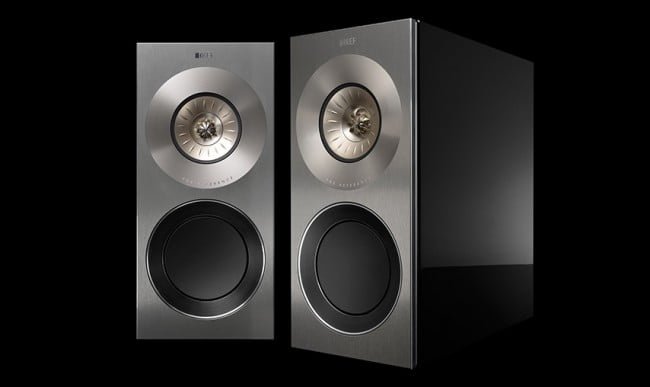

All the jaw-dropping performance and innovative engineering pioneered for the critically acclaimed LS50 studio monitor, and then some. Reference 1 pairs KEF’s latest 125mm (5 inch) MF/HF Uni-Q driver array with the sensational new 165mm (6.5 inch) alloy cone bass driver to create a compellingly realistic sound stage out of all proportion to its size. Mounted on shelves or stands, Uni-Q’s inherently wide, even dispersion also makes it the perfect rear channel speaker in a home theatre system that effortlessly reveals all the subtleties encoded in modern soundtracks.

Model REFERENCE 1
Design Three-way bass reflex
Drive Units Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units:
LF: 1 x165mm (6.5in.) aluminium
Frequency range free field (-6dB) Short port: 40Hz – 45kHz
Long port: 37Hz – 45kHz
Frequency range typical in room bass response (-6dB) 30Hz
Frequency response (±3dB) 45Hz – 35kHz
Crossover frequency 350Hz, 2.8kHz
Amplifier requirements 50-200 W
Sensitivity (2.83V/ 1m) 85dB
Harmonic distortion
2nd & 3rd harmonics (90dB, 1m) <0.5% 40Hz – 100kHz <0.2% 200Hz – 10kHz Maximum output (peak sound pressure level at 1m with pink noise) 111dB Impedance 8Ω (min. 3.2Ω) Weight 18.2kg (40.1lbs.) Dimensions (H x W x D) (with grille and terminal) 440 x 205 x 430 mm (17.3 x 8.1 x 16.9 in.) Finishes Deep Piano Black, Satin American Walnut, Luxury Gloss Rosewood MC
