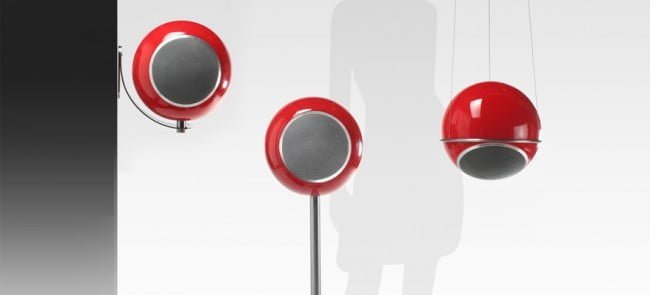

Planet L is the revival version of the Elipson spherical speaker combining high-end designs and meticulous aesthetics. As the result of 2 years of R&D efforts, Elipson has retained the best acoustic technologies for the best sound without compromise. Our Planet L speakers are fitted with a coaxial 2-way speaker that make the perfect mix of high fidelity, elegance and design. Available in three laquer finishes: Black, Red and White.

Features
SYSTEM: 2 ways
FREQUENCY RANGE (+/- 3DB): 48 – 20000 Hz
IMPEDANCE: 6 Ω
SENSITIVITY: 90 dB
MAX MUSIC POWER: 60 Watts
RECOMMENDED AMPLIFIER: 30-80 Watts
TERMINAL TYPE: Single wiring
TERMINAL FINISH: Silver plated
INTERNAL WIRING: 99,99% OFC
ENCLOSURE: Bass Reflex
Magnetic shield
Dimensions
WITH GRILL AND TERMINAL (W X H X D):
11.4 x 11.4 x 11.4″ / 290 x 290 x 290 mm
Crossovers:
CROSSOVER #1
Frequency: 3800
Slope: 12-18
Drivers:
MEDIUM
Brand: Elipson
Diameter: 6.50
Cone: paper
Magnet: ferrite
TWEETER
Brand: Elipson
Diameter: 1.00
Cone: soft
Magnet: neodynium
Warranty
2 years
Unit packaging
Manual and support ring included
QUANTITY/BOX: 1
DIMENSIONS (W X H X D):
15.9 x 16.7 x 16.9″ / 405 x 423 x 428 mm
GROSS WEIGHT: 18.7 lbs / 8.5 kg
NET WEIGHT: 15.4 lbs / 7 kg
