DIFFUSORI PAVIMENTO KEF THE REFERENCE 5 PIANO BLACK GLOSSY

REFERENCE 5

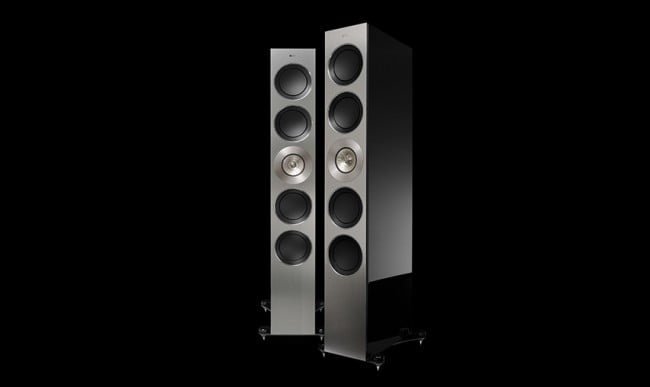

Magnificent is the only word. KEF’s passion for perfection embodied in a tall three-way floorstander that aligns four powerful, extremely linear 165mm (6.5 inch) bass drivers – two above and two below KEF’s latest 125mm (5 inch) MF/HF Uni-Q array, with the sensational new 25mm (1 inch) vented aluminium dome tweeter at the acoustic centre. Lows are reproduced with consummate agility and control, fluidly integrating with the Uni-Q output to create an all-enveloping soundfield of spine-tingling accuracy and depth. For music or film, it reveals subtleties you’d never noticed while gripping your emotions with the full power of the performance.

Model REFERENCE 5
Design Three-way bass reflex
Drive Units Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units:
LF: 4 x165mm (6.5in.) aluminium
Frequency range free field (-6dB) Short port: 35Hz – 45kHz
Long port: 32Hz – 45kHz
Frequency range typical in room bass response (-6dB) 25Hz
Frequency response (±3dB) 40Hz – 35kHz
Crossover frequency 350Hz, 2.8kHz
Amplifier requirements 50-400 W
Sensitivity (2.83V/ 1m) 90dB
Harmonic distortion
2nd & 3rd harmonics (90dB, 1m) <0.5% 40Hz – 100kHz <0.2% 200Hz – 10kHz Maximum output (peak sound pressure level at 1m with pink noise) 116 dB Impedance 8Ω (min. 3.2Ω) Weight 60.2kg (132.7lbs.) Dimensions (H x W x D) (with grille and terminal) 1350 x 205 x 470 mm (53.1 x 8.0 x 18.5 in.) Dimension (H x W x D) (with grille, terminal & plinth) 1397 x 349 x 470 mm (55 x 13.7 x 18.5 in.) Finishes Deep Piano Black, Satin American Walnut, Luxury Gloss Rosewood, Blue Ice White, Copper Black AluminiumMC
