Name: Convertitore D/A MOON – 100D
Brand: Moon
SKU: 1675
Price: 700 EUR
Availability: InStock

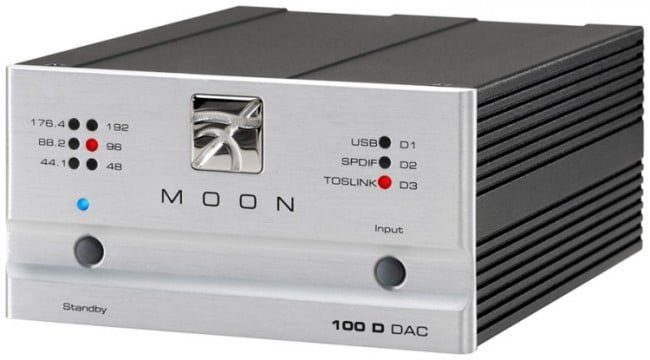

The MOON 100D Digital-to-Analog Converter accepts USB, S/PDIF and TosLink inputs. Intended for use with a computer via the USB input, the remaining inputs allow for interfacing with other source components such as a music server, digital transport, etc. All digital input signals are processed through an asynchronous sample rate converter and then 24-bit DACs.

The 100D is housed in a compact chassis constructed of rigid aluminium and features a 1/4” brushed and anodized faceplate. Don't be deceived by its small footprint since trickle-down technology dominates, thanks in no small part to its larger sibling, the 300 D … Amazing things do come in small packages.

Musical … Stylish … Compact …

Using 24-bit/1.411MHz processing, the MOON 100D will faithfully reproduce your digital music in an effortless fashion. Accepting an input signal from 44.1 to 192kHz with a bit-depth range from 16 to 24-bits, jitter is a virtual non-issue thanks to the asynchronous operation of this DAC. Sonically, it portrays all of the Simaudio hallmarks: clean, powerful, fast, extended bass combined with an open midrange and airy extended high frequencies.

Significant Design Features:

· Power supply with 3 stages of DC voltage regulation
· A fully asynchronous sample rate converter
· BurrBrown PCM1793 high-resolution 24-bit/192-kHz D/A and 8X oversampling digital filter
· Accurate digital clocking system for exceptionally low intrinsic jitter levels
· Single-ended RCA analog outputs
· Advanced analog signal path using a DC servo circuit and proprietary analog filter
· Pure copper circuit board tracings with extremely low impedance characteristics
· Extremely rigid chassis construction to minimize the effects of external vibrations
· Accurate matching of high quality components in a symmetrical circuit design
· Designed to be powered up at all times for optimal performance.

Type	Solid State
Front Panel Controls	Standby / Input Selector
LED Indicators	Locked Sampling Frequency / Input
Digital Input Types	S/PDIF (RCA) x 1 USB x 1 TosLink x 1
Digital Input Impedance S/PDIF	75 Ω @ 0.5 Volts
DAC / Digital Filter	BurrBrown PCM1793
Bit-depth range – S/PDIF, Toslink	16 – 24 bits
Bit-depth range – USB	16 bits
Sampling Frequency Rate range – S/PDIF, Toslink	44.1, 48, 88.2, 96, 176.4 and 192kHz
Sampling Frequency Rate range – USB	32 – 48kHz
Frequency Response (audible)	20Hz – 20kHz +0/-0.2dB
Frequency Response (full range)	2Hz – 72kHz +0/-3dB
THD @ 1kHz, 0dBFS (A-weighted)	< 0.003 %
IMD	< 0.0005 %
Dynamic Range	> 106dB
Signal-to-noise ratio	> 106dB @ full output
Channel Separation	> 106dB
Low Level Linearity	±1.0dB to below 120dBFS
Intrinsic Jitter	< 25 picoseconds RMS
Single-ended Analog Output (RCA)	1 pair
Max. Analog Output @ 0dBFS – Standard	2.0 Volts RMS
Output Impedance	100 Ω

Available Faceplate Finishes	Black and Silver
Power Consumption	3 Watts
AC Power Requirements	120V / 60Hz 240V / 50Hz
Shipping weight	4 lbs / 2 kgs
Dimensions (W x H x D)	5.0 x 2.9 x 6.5 in. (12.7 x 7.4 x 16.5 cm.)

Features & specifications are subject to change without notice.
