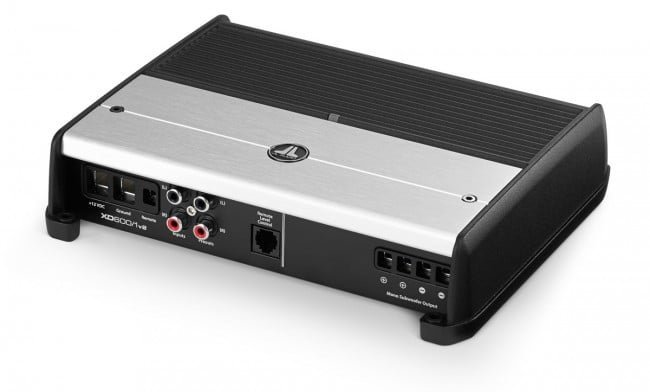

his potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Don’t let the small size fool you, though… this amplifier is capable of serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).
Targeted specifically for subwoofer applications, the XD600/1v2 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz.
The XD600/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier’s level can be directly controlled from the driver’s seat.
This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
Download the XDv2: Monoblock Amplifiers Catalog Sheet
Frequency Response 7 Hz – 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >87 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >67 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >1000 / 50 Hz
Damping Factor @ 2 Ω >500 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 50 A (AFS, AGU or MaxiFuse™) MS
