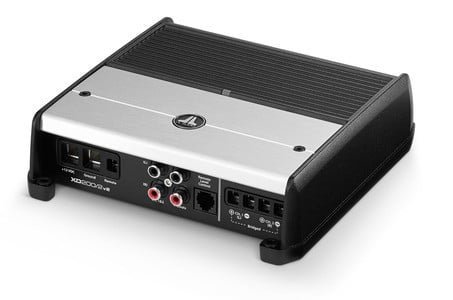

his tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
The XD200/2v2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz.
The XD200/2v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier’s level can be directly controlled from the driver’s seat.
This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
Download the XDv2: Full-Range Amplifiers Catalog Sheet
Frequency Response 12 Hz – 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) Min Copper Power / Ground Wire Gauge 8 AWG wire Fuse Rating 30 A (AFS, AGU or MaxiFuse™) MS
