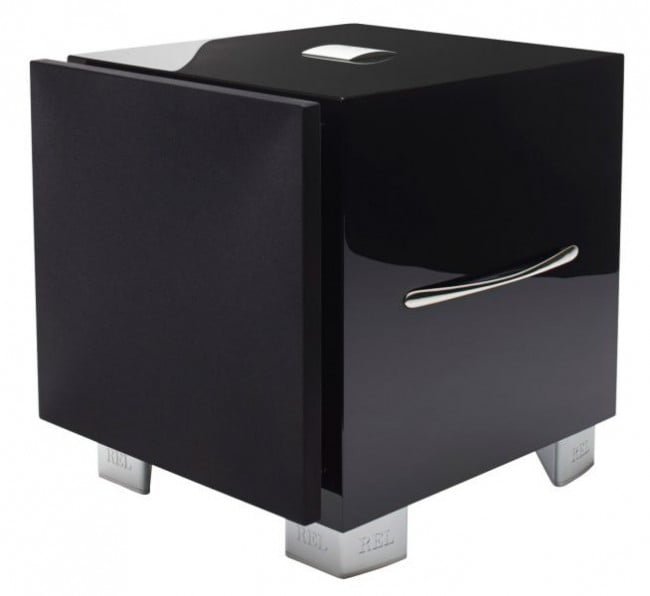

SUBWOOFER ATTIVO REL S3

SUBWOOFER ATTIVO REL S3

Subwoofer amplificato in sospensione pneumatica in classe D. Woofer a lunga escursione da 25cm con emissione frontale e radiatore passivo da 30cm con emissione verso il pavimento. Polo centrale ventilato. Potenza di amplificazione 350W in classe D. Frequenza di crossover variabile. Frequenza minima 22Hz. Fase 0/180°. Ingressi sia ad alto che basso livello. Connettore SMA per antenna wireless, per rendere il subwoofer libero dal cavo di segnale tramite il prodotto proprietario Longbow Transmitter opzionale. Robusti piedini in alluminio satinato. Dimensioni del cabinet (lxaxp): 40,6×42,4×46,3cm.

Specifications S/3 Type: Front-firing active woofer, down-firing passive radiator Active Drive Unit: 10 in., 250mm long-throw, pressed Aluminium chassis Passive Radiator: 12 in., 300mm Lower Frequency Response in Room: 22Hz at -6 dB Input Connectors: Hi Level Neutrik Speakon, Left and Right Lo Level phono, LFE phono, SMA for wireless antenna Gain Control Range: 80 dB Power Output: 400 watts (RMS) Phase Switch: Yes, 0 or 180 degrees Amplifier Type: Next Gen II Class D REL Longbow Wireless capability: Yes – REL Longbow™ transmitter [required], Sold separately Protection System Fully Electronic with SET-SAFE: Yes D.C. Fault: Yes Output Short: Yes Mains Input Voltage: 220-240 volts, 110-120 volts for certain markets Fuses (semi delay): 5 Amp 220 volts operation 9 Amp 120 volts operation Dimensions (W x H x D)*: 16 x 16.7 x 18.25 in., (406 x 424 x 463.5 mm) Net Weight: 61.4 lbs. (27.85 kg) Shipping Weight: 71 lbs. (32.2 kg) Finish (Gloss): Piano Black White Lacquer Supplied Accessories Mains Lead: Yes Neutrik Speakon Interconnect 10 Metres Nominal: Yes * Including Feet and Rear Panel Controls, Add 1.75in (44.5mm) in depth when using Hi Level connector In the interest of product development, REL Acoustics Limited reserve the right to vary these specifications without notice.
