Amplificatore finale di potenza MOON – 880M
43 Altri utenti stanno guardando questo prodotto ora
€19.900,00

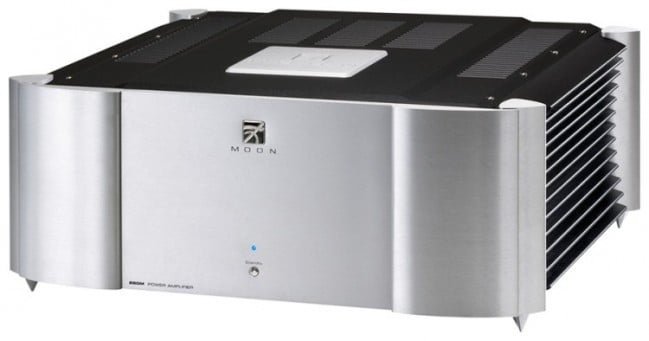

Amplificatore finale di potenza MOON – 880M
Consegna stimata:3 giorni
[DISPLAY_ULTIMATE_SOCIAL_ICONS]
Garanzia di pagamento sicuro e protetto
The MOON 880M Power Amplifier is a fully balanced differential mono design that effortlessly outputs 800 watts into 8Ω and 1600 watts into 4Ω. Transparency and soundstage are as good as it gets, despite this amplifier's astonishingly high power rating. Ultimately, the 880M will mate seamlessly with any loudspeaker allowing it to reach its full sonic potential, regardless of its load.
Several recent in-house developed advancements allows the MOON 880M to perform with the accuracy and grain-free character of our lower powered amplifiers; These include (i) MOON output transistors, specifically designed for use in our amplifiers, providing tighter and more visceral bass performance, as well as unprecedented linearity thoughout the entire frequency spectrum; and (ii) our advanced "zero global feedback" circuit, commonly referred to as Lynx
Of course, both RS-232 and 12 Volt triggers for custom-install environments are included as well as a plethora of user selectable cosmetic options that are available at the time of purchase.
Significant Design Features:
· Full unsolicited RS-232 bidirectional feedback
· Lynx circuitry which is a "no overall feedback" design resulting in genuine real-time amplification,
a more accurate musical reproduction with respect to tonality, virtually non-existent IMD and the
elimination of common phase errors resulting from feedback
· Precision matched and fully decoupled proprietary MOON Bipolar output transistors with
unprecedented gain linearity resulting in improved bass response and even more accurate
sonic reproduction
· Custom proprietary toroidal transformer design with lower magnetic, electrical and thermal
loss, yielding an improved power transfer and lower regulation factor. The result is increased
current speed and better dynamics
· A massive oversized power supply
· 12 Volt trigger input/output for remote operation
· "Class A" output to 10 watts for greater efficiency
· A high damping factor yielding superior musical dynamics, improved signal speed and refined
refined timbre accuracy
· A very short capacitor-free signal path for a faster transient response
· Stable to any known speaker impedance
· 4-Layer PCB’s with pure copper tracings for a much shorter signal path; This results in
greater sonic accuracy and a dramatically improved signal-to-noise ratio
· Ultra rigid chassis construction to minimize the effects of external vibrations
· Accurate matching of the very finest quality electronic components in a symmetrical circuit design
· Designed to be powered up at all times for optimal performance
· Low operating temperature for a longer than normal life expectancy.
· Lynx circuitry which is a "no overall feedback" design resulting in genuine real-time amplification,
a more accurate musical reproduction with respect to tonality, virtually non-existent IMD and the
elimination of common phase errors resulting from feedback
· Precision matched and fully decoupled proprietary MOON Bipolar output transistors with
unprecedented gain linearity resulting in improved bass response and even more accurate
sonic reproduction
· Custom proprietary toroidal transformer design with lower magnetic, electrical and thermal
loss, yielding an improved power transfer and lower regulation factor. The result is increased
current speed and better dynamics
· A massive oversized power supply
· 12 Volt trigger input/output for remote operation
· "Class A" output to 10 watts for greater efficiency
· A high damping factor yielding superior musical dynamics, improved signal speed and refined
refined timbre accuracy
· A very short capacitor-free signal path for a faster transient response
· Stable to any known speaker impedance
· 4-Layer PCB’s with pure copper tracings for a much shorter signal path; This results in
greater sonic accuracy and a dramatically improved signal-to-noise ratio
· Ultra rigid chassis construction to minimize the effects of external vibrations
· Accurate matching of the very finest quality electronic components in a symmetrical circuit design
· Designed to be powered up at all times for optimal performance
· Low operating temperature for a longer than normal life expectancy.
| Type | Solid State |
| Configuration | Mono / Fully Balanced |
| Power Supply Transformers | 2 x 1.3kVA |
| Power Supply Capacitance | 240,000µF |
| Class Of Operation | A/AB |
| Balanced Input | XLR – 1 |
| Single-ended Input | RCA – 1 |
| Input Device Type | J-FETs |
| Input Impedance | 47.5 KΩ |
| Input Sensitivity | 2250mV RMS |
| Output Device Type | Bipolars – 32 |
| Output Binding Posts | WBT – 2 pairs |
| Output Power @ 8 Ω | 800 Watts |
| Output Power @ 4 Ω | 1600 Watts |
| Frequency Response | 10Hz – 200kHz (+0/-3dB) |
| Output Impedance | < 0.004 |
| Damping Factor (static) | > 2000 |
| Gain | 31dB |
| Signal-to-noise Ratio | 106dB @ full power |
| Maximum Output Voltage | 80 Volts |
| Slew Rate | 70 V/µs |
| Maximum Current – Peak | 100 amperes |
| Maximum Current – Continuous | 42 amperes |
| Crosstalk @ 1kHz | Not applicable |
| IMD | Unmeasureable |
| THD (20Hz – 20kHz @ 1 watt) | 0.015 % |
| THD (20Hz – 20kHz @ 500 watts) | 0.04 % |
| 12 Volt Trigger Operation | Direct Logic (0V = off, 12V=on) using a 1/8" mini-jack with an input impedance of 1K Ω and current requirement of 12mA |
| RS-232 Port | 9-pin female DB connector |
| Power Consumption @ idle | 48 watts |
| AC Power Requirements | 120V / 60Hz 240V / 50Hz |
| Fuse Replacement – 120V | 10A long fast blow |
| Fuse Replacement – 230V | 5A long fast blow |
| Shipping weight | 92 lbs / 42 kgs |
| Dimensions (w x h x d) | 18.75 x 7.5 x 17.5 in. |
Features & specifications are subject to change without notice
