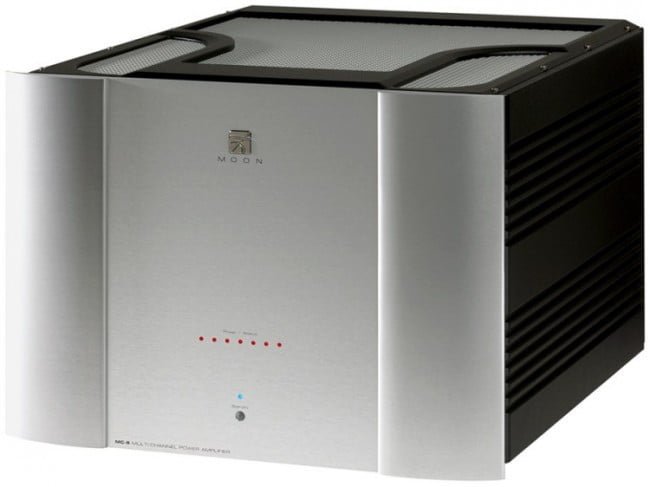

Amplificatore finale di potenza Home Cinema MOON – MC 8/5
26 Altri utenti stanno guardando questo prodotto ora
€21.600,00
Amplificatore finale di potenza Home Cinema MOON – MC 8/5
[DISPLAY_ULTIMATE_SOCIAL_ICONS]
Garanzia di pagamento sicuro e protetto
Available in configurations from 2 to 7 channels, the MOON MC-8 was designed with one overwhelming goal in mind: uncompromising reproduction of both the massive dynamics and awe inspiring sonics that accompany today's uncompressed multi-channel audio recordings (Blu-Ray). To accomplish this feat and the numerous engineering challenges that go with it, a whole new approach to the design of multi-channel amplification was required.
Relying on many technologies found in our highly-acclaimed Evolution Series power amplifiers, numerous physical and electrical constraints had to be overcome to create a multi-channel amplifier where all 7 channels would be capable of identically staggering performance. The result is theMOON MC-8 which can produce a maximum continuous power output of 250 watts per channel into 8 ohms, 500 watts per channel into 4 ohms and 1000 watts per channel into 2 ohms, generating a mind-numbing ultra-high-current output signal of 280 amperes spread across 7 channels. The MC-8 is leaps beyond anything else available, even our own MOON Titan. A quick listen will reveal a level of sound purity, sheer power and limitless dynamics that no other multi-channel power amplifier has ever been able to attain, let alone hint at. The MOON MC-8 is a genuine masterpiece, a technological tour-de-force, and a colossal achievement that has no equal. |
| Significant Design Features: · An enormous power supply featuring a proprietary toroidal transformer design that allows for astonishing dynamics from Blu-Ray soundtracks · The world’s first and only multi-channel amplifier capable of simultaneously handling 7 channels of uncompressed audio without any dynamic compression · Class “A” output to 5 watts for greater efficiency and refined sonics at typical listening levels · Balanced differential circuitry · Extremely fast circuitry for real-time amplification · Modular circuit design using plug-in cards for the addition/removal of channels “in the field” · Virtually non-existent intermodulation distortion · Proprietary MOON Bipolar output transistors with unprecedented gain linearity resulting in improved bass response and even more accurate sonic reproduction · A very high damping factor yielding extremely tight, accurate and fast reproduction of bass notes · Ultra rigid chassis construction to minimize the effects of external vibrations · Accurate matching of the highest quality electronic components · RS-232 port for full custom external control · 12 Volt trigger for remote operation · Very short signal path for a faster transient response · Requires a 220-240V AC power outlet · Pure copper circuit board tracings with extremely low impedance characteristics · Designed to remain powered up at all times for optimal performance · Low operating temperature for an exceptionally long life. |
| Type | Solid State |
| Configuration | 2 to 7 channels |
| Power Supply Transformer | 3.0kVA |
| Power Supply Capacitance | 280,000µF |
| Class Of Operation | A/AB |
| RCA Input | 1 per channel |
| Balanced Input | 1 XLR per channel |
| Input Impedance | 24,900 Ω |
| Input Sensitivity | 1420mV RMS |
| Output Device Type | Bipolars – 8 per channel |
| Output Binding Posts | WBT |
| Output Power @ 8 Ω | 250 Watts |
| Output Power @ 4 Ω | 500 Watts |
| Frequency Response | 10Hz – 100kHz +0/-3dB |
| Output Impedance | 0.01 Ω |
| Damping Factor (static) | 800 |
| Gain | 29dB |
| Signal-to-noise Ratio | 105dB @ full power |
| Maximum Output Voltage | 42 Volts |
| Slew Rate | 80V/µs |
| Maximum Current | 280 amperes |
| Crosstalk @ 1kHz | < -90dB |
| Intermodulation Distortion | Unmeasureable |
| THD (20Hz – 20kHz @ 1 watt) | < 0.02 % |
| THD (20Hz – 20kHz @ 250 watts) | < 0.05 % |
| 12 Volt Trigger Operation | Direct Logic (0V = off, 12V=on) using a 1/8" mini-jack with an input impedance of 1k Ω and current requirement of 12mA |
| Available Faceplate Finishes | Black and Silver |
| Power Consumption @ idle | 85 Watts |
| AC Power Requirements | 220-240V / 60Hz 240V / 50Hz |
| Fuse Replacement | long fast blow – 10A (3AG) |
| Net weight | 170 lbs / 76 Kgs |
| Shipping weight | 240 lbs / 108 Kgs |
| Dimensions (W x H x D) | 17.4 x 13.4 x 21.0 in. (44.2 x 34.0 x 53.3 cm.) |
Features & specifications are subject to change without notice.
